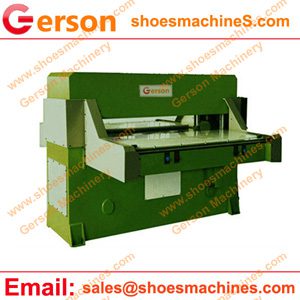

Microfiber fabric cutting machine

The Gerson  cutting machine for die cutting Microfiber fabric .Microfiber fabric is used for making Microfiber Clean wiper, Microfiber Bag, Microfiber Pad, Microfiber Woven Microfiber Blanket, Microfiber Product, Microfiber Glove etc.,

 Microfiber fabric cutting machine

Microfiber fabric cutting machine



Features and advantage:

1.From the smallest 25 Ton to the largest 500 Tons.
2.Cutting are from 800x500mm to any size according material requirement.
3.Die Cut materials in single or multiple layers
4.Blade upward or downward cutting
5.Four column, with two cylinder construction
6.Double mechanical balancing system
7.Even cutting and full power across complete cutting area
8.Heavy duty construction
9.Low deflection
10.Two stage press closure reduces size variation or distortion in 12.thick or multi-ply material applications
11.Steel to steel cutting available with optional equipment
12.Accept customized requirement .

Option equipment tools:

1.Inboard and outboard material conveyors
2.Manual tool rails
3.Pneumatic adjustable tool rails
4.Board rails to clamp cutting board to press head
5.Material feed rollers
6.Automatic knock-out systems
7.Material alignment
8.Automatic cutting pad shifter
9.Edge sensing
10.Automatic tool changing
11.Tool racking
12.Material feed gantries and many other options.

Model GRB(C)-25T to 500T
Max cutting force(T) From 25T to 500
Distance between upper press board andworktable(mm) 50-240
Cutting area(mm) 1250×600,700,800,900,1000,1200, 1500
1470×600,700,800,900,1000,1200, 1500
1600×600,700,800,900,1000,1200, 1500
Motor power 1.5 to 22KW
Machine Net weight (KG) 1600 to 16500
1700 to 17500
