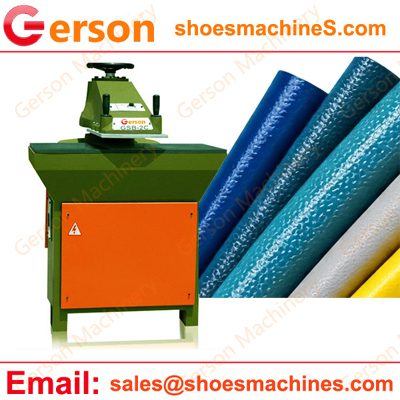

Marine Vinyl Fabric Die Cutting Machine is designed and manufactured by Gerson Machinery. Gerson specialized die-cutting machines tailored to the precise cutting needs of Marine Vinyl Fabric.The most marine vinyl fabrics are used for Boat Upholstery, bimini tops, boat covers, and interior panels,headlining, seats, cushions, and much more etc.,
The Small Swing Arm Clicke Press Cutting Machine General Features:
- Lightweight Design: Reduced weight for easier operation and maintenance.
- Quiet Operation: Minimized noise pollution for a more comfortable work environment.
- Enhanced Efficiency: Optimized performance for increased productivity
- Hydraulic Power: Provides consistent and powerful cutting force.
- Adjustable Stroke: Allows for precise control of cutting depth.
- Safety Features: Includes safety guards and emergency stop buttons.
- Durable Construction: Built to withstand heavy use and last for many years.
- Easy Maintenance: Simple to clean and maintain.
Key Features
- Optimized for small-format cutting, perfect for workpieces up to 1200x600mm
- Manual operation with a swinging beam for flexible access and positioning
- Suitable for bending applications requiring less than 30 tons of force
- Ideal for smaller workshops or low-volume production environments
Specification:
| Model | GSB-10/12/14/15/16/18/20/25 |
| Cutting Force | 10,12,14,15,16,18,20,25 Tons |
| Sway Arm Width | 330X450,350X450,450X550mm |
| Stroke Adjustment | 5-75mm |
| Range between working table | 60-140mm |
| Table Area | 900X400mm,1000X500mm |
| Electric Supply Voltage | 3×440/415/400/380/220V, 50/60Hz |
| Motor Power | 0.75kw,1.1kw,1.5Kw |
| Packing Size(LXWXH) | 1100X1100X1700mm |
| Weight | 500/650/1000/1100kg |
| Hydraulic oil (46#) | 50 Liters |
How Marine Vinyl Fabric Die Cutting Machine Works
- Material Placement: The Marine Vinyl Fabric to be cut is placed on the cutting board.
- Die Positioning: The cutting die is positioned over the desired cutting area.
- Swing Arm Activation: The operator activates the press, causing the swing arm to descend.
- Cutting Operation: The cutting die, under pressure, cuts through the material.
- Swing Arm Retraction: The swing arm returns to its original position, ready for the next cut.
This also can be used for a variety of applications, including leather, fabric, foam, and plastic cutting. They are a great choice for businesses of all sizes that need a reliable and efficient cutting solution.
Gerson have more larger machinery for cutting difference bigger sizes of material .You could see more details on our traveling head press and beam press.
