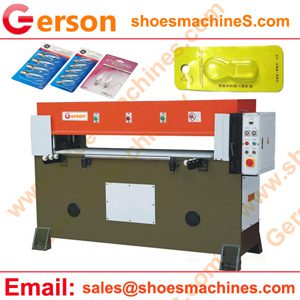

Manual sliding table plastic blister cover pack card die cutting machine is of full beam type cutting machine for Plastic Pvc,pp etc., Blister Packing card,. And the sliding table can be single or double, the feed modes can be selected from manual and auto ones.
Although double sliding table type can make room for both workers to work at the same time to increase production, the working principles of both kind is the same: A polypropylene cutting board on the machine working table in advance. After feeding blister cover card on it, cutting tools are placed above.
Finally, push the beam down to press the cutting tool, and then the cutting operation is done.
Key Feature:
1. Cutting power (T): 25 to 500.
2. Cutting table: 1600mm x 500mm to 2500mm x 2500mm, even larger ones can be customized.
3. Feed modes: manual & auto continuous die cutting type.
4. Large variety of materials including leather, paper, fabric, foam, and rubber, plastic are within the cutting range.
| Model | GRB(C)-25T to 500T |
| Max cutting force(T) | From 25 Tons to 500 Tons |
| Range between working table | 50-240mm (Upper to Bottom Table) |
| Stroke Adjustment | 0-170mm can be customized |
| Cutting area(mm) | (500-3000)X(1000-3000)mm |
| Based on your material and die | |
| Example: 1600X600mm etc., | |
| Motor power | 1.5 to 22KW |
| Electric Power | 220V/380V/415V,50-60hz etc., |
| Machine Net weight (KG) | 1600 to 16500 |
| 1700 to 17500 |
