Die Cutting Machine
38 Years+ Manufacturer
Quote Now

Leather shoes clicker press

The clicker press for leather shoes,formal shoes, casual and comfort style.All the components of the shoes are cut out of selected materials, such as leather, textile, etc., by using clicker press.

There have several models clicking press for choice:

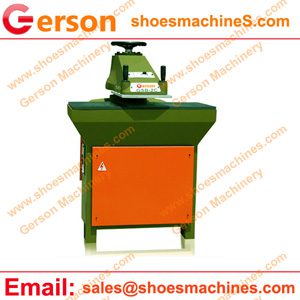

1.GSB-2C clicker press

Leather shoes clicker press
Leather shoes clicker press

GSB-2C have 10Tons cutting pressure ,16 tons cutting force ,20 Tons and 25Tons cutting force.The cutting area from 900×400mm to 1000×500mm.

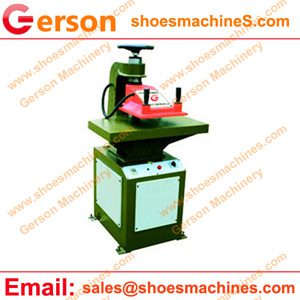

2.Small cutting force and table clicker press

Leather shoes clicker press
Leather shoes clicker press

GSB-8 and GSB-10 have cutting force 8 tons and 10Tons ,the cutting table :650×330mm or other custom made.

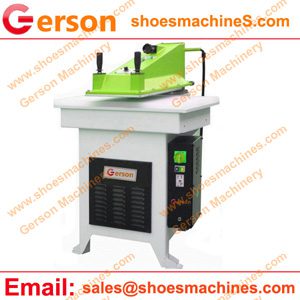

3.GR-20C,GR-27C.

Leather shoes clicker press
Leather shoes clicker press

20Ton and 27 Ton cutting force ,The cutting table can be 900 x 430mm, 900 x 450mm,1000 x 500mm,1200 x 500mm,or more

4.GRA-220,GRA-270

Leather shoes clicker press
Leather shoes clicker press

20Ton and 27 Ton cutting pressure,the cutting table from 900 x 430mm,1000 x 500mm

Model GSB-8/10,GSB-2C,GR,GRA
Maximum   Cutting Force 8Tons,10,12,14,15,16,18,20,22,25,27,28 ton
Cutting speed 0.085m/s
Adjustable stroke 5-180mm
Tension distance 60-190mm
Cuttting table size 650×330mm,900×430mm,1000×500mm
size 660×780×1500mm to 1350×1180×1700mm
Motor Power 0.75KW to 1.5Kw
Net Weight (N.W.) 550Kgs to 1200kgs
