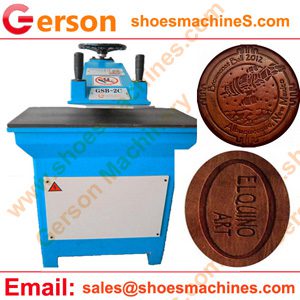

Leather crafts Clicker Press

Leather crafts Clicker Press is widely adopted in die cutting operation of leather products including leather crafts, leather bag, leather shoes, leather wallet/purse etc.
Leather crafts Clicker Press
Leather crafts Clicker Press

Key Feature
1. Hydraulic serves as driving power.
2. Not only cutting leather, the machine is also applicable to die cutting operation of many materials covering gaskets, rubbers, fabric, vinyl, plastics, diapers, carpet, body bags, medical devices etc.
3. The machine is reliable and noiseless when operated by both hands. Also, it costs little to maintain.
4. A wide range of cutting table size can be chosen from 650*350mm to 1200mm*600mm.
5. Cutting force as well: 8T to 30T.

Model GSB/10/12/14/15/16/18/20/25
Cutting Force 10,12,14,15,16,18,20,25 Tons
Sway Arm Width 330X450mm,350X450mm,450X550mm
Stroke Adjustment 5-75mm
Distance Between Upper Table And Lower Table 60-140mm
Table Area 900X400mm,1000X500mm
Electric Supply Voltage 3×440/415/400/380 /220V, 50/60 Hz
Motor Power 0.75kw,1.1kw,1.5Kw
Packing Size(LXWXH) 1100X1100X1700mm
Weight 500Kg/650kg/1000kg/1100kg
Hydraulic oil (46#) 50 Liters
