Die Cutting Machine

38 Years+ Manufacturer

leather clicker press

All of Geson clicker press can be for leather material cutting .Geson swing arm clicker press have the following models foryour choice when cutting leather or paper,rubber,plastic,textile ,etc., soft or semi-hrad material.

GSB-8/10 : Clicking Press 8T/10T This is small die clicker press. 8T or 10T cutting force with cutting area 650×330mm.

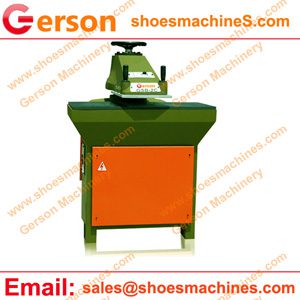

GSB-2C/10T/12T/14T/22T/25T :This is 10T to 25T cutting pressure ,with cutting table 900×400mm and 1000×500mm.

GR-20C,GR-27C,27C/1,27C//2:From 20T to 27T cutting force.with cutting area 900 x 430 900 x 450,1000 x 500,1200 x 500mm

GRA-220,270 From 20T to 27T cutting force.with cutting area 900 x 430,1000 x 500mm

Model	GSB-8/10,GSB-2C,GR,GRA
Maximum Cutting Force	8Tons,10,12,14,15,16,18,20,22,25,27,28 ton
Cutting speed	0.085m/s
Adjustable stroke	5-180mm
Tension distance	60-190mm
Cuttting table size	650×330mm,900×430mm,1000×500mm
size	660×780×1500mm to 1350×1180×1700mm
Motor Power	0.75KW to 1.5Kw
Net Weight (N.W.)	550Kgs to 1200kgs

leather clicker press, leather die clicking press
