Hydraulic Traveling Head Cutting Machine

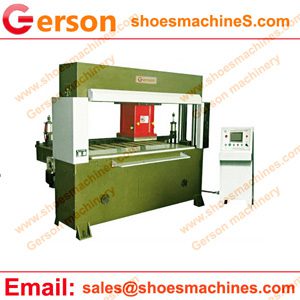

Gerson Hydraulic Traveling Head Cutting Machine is hydraulic cutting machine with traveling head or move head.There have manual Hydraulic Traveling Head Cutting Machine and CNC Hydraulic Traveling Head Cutting Machine. It is widely used in many industry lines:

 Hydraulic Traveling Head Cutting Machine

Hydraulic Traveling Head Cutting Machine

Leather (Full & Half Hides)
Abrasives-discs, sheets Laminates, Acoustics
Airbags Mastic Automotive Interiors Membrane Switches
Canvas Molding & Trimming Carpets/Rugs/Floor Tiles Non-woven Materials
Composite Materials Paper & Envelope Cork Paperboard
Corova Nylon Fabric Plastic-Corrugated Board,Sheets Corrugated Packaging Thermo/Vacuum Formed Products
Cosmetic Supplies Plywood Embossing Polycarbonate
Fabrics-cotton,broadcloth, Polyester & Felt Fiberboard Pressboard Materials
Fiberglass-batting/insulation,sheets Puzzles Film PVC Foamboard
Filter Materials Rubber-gaskets,sheets,insulation,etc. Foam-rubber,sponges, pads, etc. Upholstery-auto/furniture
Furniture-chipboard & pressboard Velcro-type Product Heat-Sealed Products Vinyl-sheets/pressure sensitive
Kevlar Fabrics Hardboard Insulation Sponge

1. Traveling head is running over the total cutting bed width of the machine.
2.The traveling head moves left and right together with the  cutting die ensures the clear view over the table.
3. it is possible to work more effective with roll- and an bigger sheet material.
4.Very quickly motion of crosshead makes the machine extremely productive.
5.Cutting area and cutting head size can custom made.
6.Automatic PLC control is available.
6.Special requirement welcome to contact us.

Model GRM-25,30,40,50,60,80,100
Max Cutting Force 25 to 100 tons
Cutting table Widths 1800~2500mm or more
Cutting Head/Movable trolley 500 x 500mm up to 1000 x 1000mm
Gerson can make the cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,co
