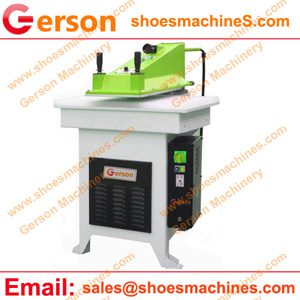

Gerson hydraulic press cutter with swing arm is hydraulic cutting machine for die cutting the small to medium size of soft and semi-rigid material including leather,clotch,paper,cardboard, Nylon,Teflon,PTFE,PEEK,Ultem,Polysulfone,PVC,rubber etc.,
1.This hydraulic press cutting can die-cut any shapes with the custom die or knife.
2.The siwng arm can move it easily while change the cutting die for next die cut.
3.hydraulic driven make the machine easy operation and low maintanence.
4.Double hand operation make sure the safety of working.
5.Any specifc requirement of applications, sizes, or production need can be custom built.
| Model | GSB,GR,GRA model |
| Maximum Cutting Force | 8-30 tons |
| Cutting speed | 0.085m/s |
| Adjustable stroke | 5-180mm |
| Tension distance | 60-250mm |
| Cuttting table size | 800,900,1000,1200×400,500mm |
| size | 660×780×1500mm or more |
| Motor Power | 0.75KW,1.1KW |
| Net Weight (N.W.) | 450Kgs-1100Kgs |
