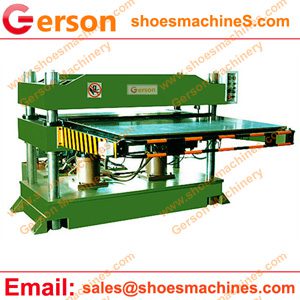

Hydraulic Flatbed Four Post Press Machine

The Hydraulic Flatbed Four Post Press Machine is the special hydraulic press machine for pressing and die cutting most  non-metallic and metallic including foam, plastic, rubber, paper, textiles and leather for gasket making, also could be for  forming processes for powder and abrasive products, plastic and insulation materials.

Hydraulic Flatbed Four Post Press Machine
Hydraulic Flatbed Four Post Press Machine

1.The press  can be with steel rule dies, male/female dies, or combination tools to blank parts or kiss-cut materials.

2.The press manufactured by Gerson machinery can be used for in both small  shop or lab  with short runs to major big companies with very large production .

3. The press can be for both roll and sheet materials – single or multi layered. The press can have manual or automatic operation dependant on feed system.

4.It is hydraulic driven press system ,low noisy and easy maintenance .

5.The press force ,press table area and feed type etc., all can custom manufacturerd.

Model GRB(C)-25T to 1500T
Max cutting force(T) From 25 Tons to 1500 Tons
Distance between upper press board andworktable(mm) 50-240
Cutting area(mm) 1250×600,700,800,900,1000,1200, 1500
1470×600,700,800,900,1000,1200, 1500
1600×600,700,800,900,1000,1200, 1500
Motor power 1.5 to 22KW
Machine Net weight (KG) 1600 to 16500
1700 to 17500
