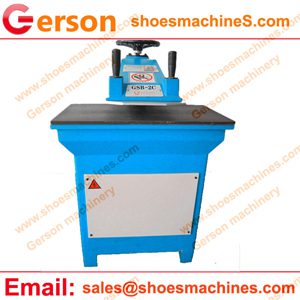

Hydraulic die punch press is one of the hydraulic presses, which is able to punch various shapes.It can die punch the hard material , semi-hard material and soft material.
1. Gerson have different model for different material such as steel ,aluminium ,copper, plastic, leather, paper, foam, EVA, Cork, fabric and many other low-rigid materials.
2. Even built in rigid structure, the machine body is rather light.
3. Safety guaranteed: one hand operation is banned and the punching operation is controlled by button.
4. Not only force, but also punching table size can be customized.
5. Feed mode: auto feed & auto, lasting punching
6. Special request can be met to the largest extend.
Model | GR,GRAmGRB(C)-25T to 1500T |
Max cutting force(T) | From 10 Tons to 1500 Tons |
Distance between upper press board andworktable(mm) | 50-240 |
Cutting area(mm) | 800×4001250×600,700,800,900,1000,1200, 1500 |
1000×500,1470×600,700,800,900,1000,1200, 1500 | |
650×350,1600×600,700,800,900,1000,1200, 1500 | |
Motor power | 1.1 to 22KW |
Machine Net weight (KG) | 600 to 16500 |
700 to 17500 |
