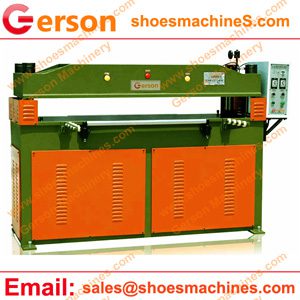

Hydraulic die cut machine

Hydraulic die cut machine
Hydraulic die cut machine

This Hydraulic die cut machine is mostly used for cutting single layer or multi layes material of paper,plate,board,textile,leather, foaming material, plastic, rubber floor and carpet etc., used by more than hundreds of insductries.

1.Four steel pillars building let ensure the great stabilily,so the head or beam working up and down is safe and stable.
2. Self-lubricating system and the self-lubricating bearing to reduce wears, so as to prolong the machine usage life.
3.The mechanism of four-column guiding, double oil cylinder and mechanical balancing system can ensure the parallelism between the upper and lower worktables.
4.The operation with both hands provided with working pull board can ensure convenience and safety for operators.



 Model  GRF-30  GRF-35/40  GRF-50/60
Maximum Cutting Force 300KN/30T 350/400KN 500/600KN
Cutting speed 0.10m/s
Stroke adjustment 0110mm
Range between the working tables 50160mm
Size of the upper pressing board 1600×600mm 1600×760mm 1600×920mm
Size of the working board 1600×640mm 1600×800mm 1600×960mm
 Motor power 2.2KW 4KW 5.5KW
Overall dimension 2150×700(850)×1300mm/2280×1465×1460mm
 weight 1800kg 2000kg 3800kg
