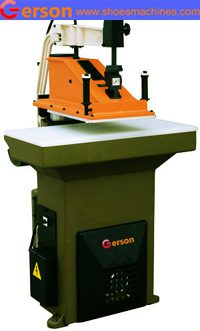

hydraulic cutting press machine 22T/28T

Features:

1.Affordable,Fast, quiet, simple operate
2.Rugged casting Iron strong frame,durable lifetime
3.Steel fabricated swinging beam with widths to support an area of needs
4.Special selectable setting with use with small area dies
5.over penetration into your cutting pad
6.Excellent operator visibility
7.Low noise level,Safe, vibration free operation
8.Cut materials : soft or semi-rigid
9.Cut materials in single or multiple layers
10.Swing beam (arm) allows full access and visibility
11.Utilize all standard tool types – strip steel, wood forme, forged steel
12.Varying tool heights works extremely well without adjustment
13.Double acting hydraulic cylinder
14.Full of high grade polypropylene cutting board, hydraulic oil and operating manual

Used:

This Hydraulic cutting press used for cutting leather :shoes,bag,belt etc., soft plastic, rubber, fiber, cotton fabric, paperboard ,textile, soft or semi-rigid



Model Cutting Table UP Beam Head Max Pressure Net Weight
GRA-280L 1000×500 610mm 28T–28 tons 1050 (kg)
GRA-280M 1000×500 500mm 28T–245Kn 1030 (kg)
GRA-280C 900×450 500mm 28T–245Kn 900 (kg)
GRA-250L 1000×500 370mm 25T–245Kn 990 (kg)
GRA-250M 900×450 370mm 25T–245Kn 880 (kg)
GRA-220L 1200×500 500mm 22T – 216Kn 1060 (kg)
GRA-220M 900×450 370mm 22T – 216Kn 880 (kg)
GRA-220C 900×430 370mm 22T – 216Kn 630 (kg)
GRA-10C 600×300 300mm 8T – 78 Kn 430 (kg)

Electric Supply Voltage:  3 phases×440/415/400/380/220/200V, 50/60 Hz,

Single phase:110V/240V/220V, 50/60 Hz
