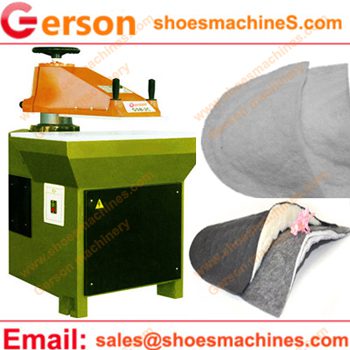

Hydraulic cotton shoulder pads die cutting machine is die cutting cotton shoulder pads ,white cotton shoulder pads / insert suits or Jacket,Cotton/Wool Woven Raglan Shoulder Pad, Cotton Seat belt Shoulder Pads covers etc.,
1.The machine can die cut any size for example :3.5″,,4.5″ etc., And any shapes of round etc.,
2.The die cutting machine can also die cut the material from textiles, paper, plastic, and artificial and genuine leather
3.It is hydraulic driven system using top quality hydraulic spare parts and strong construction.
4.The machine and die both can custom build .Any requirement contact us .We could manufacture the machine based on your requirement or material production.
Model | GSB,GR,GRA,GRB serials |
Max cutting force(T) | 8Tons-500Tons or More |
Range between working table | 50-240mm (Upper to Bottom Table) |
Stroke Adjustment | 0-170mm |
Cutting table | 650×330mm to 3000mm×2500mm |
Based on your material and die | |
Example: 1000X500mm etc., | |
Cutting Head | 330×450 to More |
Motor power | 0.75kw to 22KW |
Electric Power | 220V/380V/415V,50-60hz etc., |
Machine Net weight (KG) | 1600 to 16500 |
1700 to 17500 |
The machine taht die cutting the below material and should pads such as :
3.5″ NS x 4.5″ (4.5″ round), Small Raglan in Nude (Champaign) LACE top with 100% COTTON.,(12cm x 20cm), Molded Foam Shoulder Pads.3.5″ (neck to shoulder) x 5″ , Ready to Wear New Style Bubble Raglan Shoulder Pads,4.5″ x 8″, Shoulder Pads have a molded fiberfill insert in white LACE etc.,4″(neck to shoulder) x 7.5″, in Nude (Champaign) LACE top.
Gerson can make the cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,etc.,
