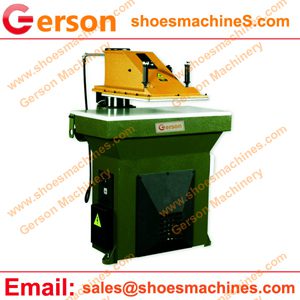

Hydraulic clicking press with rotary arm

Hydraulic clicking press with rotary arm is one of Gerson die cuttingmachine which can cut out one layer or several layers of materials such as leather , plastics , canvas , nylon, paper boards and synthetic materials.

Hydraulic clicking press with rotary arm
Hydraulic clicking press with rotary arm

1.The rotary arm can sway flexibly with excellent operating visual field,easy and fast operation.
2.it need the worker operate with both hands,it is more safe and reliable.
3.Unique setting structure, top quality hydraulic system, Stroke adjustment simple and accurate
4.You only need to place the material on the cutting pad/board , position the cutting die tool on the material and press the operating buttons by yourdouble hand. The beam descends under hydraulic power to cut the required cut shape.
5.Gerson have many model and size to meet your requirement.

Model GSB,GR,GRA,GRB serials
Maximum   Cutting Force 8Tons-500Tons or More
Cutting speed 0.085m/s
Adjustable stroke 5-300mm or more
Tension distance 60-350mm or more
Cuttting table size 650×330mm to 3000mm×2500mm
size 660×780×1500mm to 2800×3200×1700mm
Motor Power 0.75KW to 22Kw
Net Weight (N.W.) 550Kgs to 18000kgs
