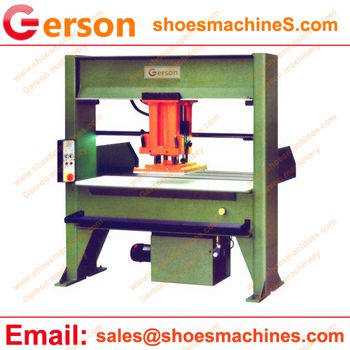

Hydraulic Clicking Machine Bridge Type is one of die-cutting machine manufactured by gerson .It is for cutting the material fabric,PU,Cotton ,leather, skims, synthetic materials,plastic,foam ,spone, cork, rubber, paper, EVA, thermoplastic,EVA,EPE,XPE etc.,
1.The middle bridge can move to die cut the material by the cutting die .The cutting die can also be manufactured by Gerson.
2.This clicking machine have manual feed and cutting or automated feed material and cutting for your choice.
3.The clicking machine can be feed in sheet material or roll material depending on your material requrest.
4.The clicking machine have very minimum maintenance and maximum safety for your production.Gerson Using top quality hydraulic parts and hydraulic system to make surethe machine high productivity, efficiency.All gerson machine manufactured by many years skilled workers.
5.Further information or custom build welcome to contact us at any time.
| Model | GRM(A)-25,35,40,50,80,100 |
| Maximum Cutting Force | 250KN to 1000KN |
| Area of work table(mm) | 1600,1800,2000,2200,2500*500,600,800,1000,1200,1500 |
| Dimension of press head(mm) | 500*500,600*600,800*800,1000*1000 |
| Adjustable travel(mm) | 5-150 |
| Main motor power | 2.2,4.0KW |
| Machine dimensions(mm) | 2200,2400,2600*620*2000 |
| Weight(approx.) | 2000,2500,3500,3800,4800,6000kg |
