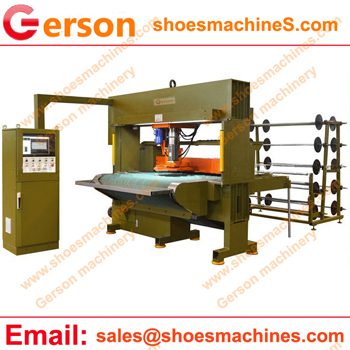

How to choose the automatic die cutting machine?

How to choose the automatic die cutting machine
How to choose the automatic die cutting machine

Because the automatic die cutting machine has the advantages of high efficiency, low energy consumption, convenient operation and saving physical strength, it has been more and more popular among users; the popularization of automatic cutting machines has become a trend. However, the variety of automatic cutting materials is also quite different, which brings certain confusion to the purchase; Gerson today makes a simple introduction to the automatic cutting machine purchase, in order to give you a reference for purchase.


Today we introduced a kind of a CNC automatic cutting machine. The traveling head automatic cutting machine is also called a moving head cutting machine, and the punching head can be moved to the left and right. (Note: The following we call the mobile gantry automatic cutting machine is an automatic cutting machine.) The automatic cutting machine is used for punching and cutting the non-metal sheet or roll material by means of a die. Just like Gerosn autoamtic die cutting machine .
The Gerson die cutting machine advantage is: fast speed, High efficiency, energy saving, material saving and low noise. So let’s first understand some of the basic structure and control principles of the automatic cutting machine, so that we can choose the one that suits us when we purchase.

First: the mechanical structure is divided into ordinary type and precision four column die cutting machine type;
1. The ordinary automatic cutting machine is connected by drawers on both sides of the upper and lower fuselage. The upper and lower fuselage are locked by four high-strength bolts through the support, the moving head moves left and right, and the center of the moving head is the upper and lower sides of the cylinder. Pressurization; fuel tank, motor, hydraulic system are concentrated inside the lower fuselage, surrounded by a shield. This structure is an old-fashioned structure.

2, precision automatic cutting machine for the upper and lower fuselage four corners with four-column connection, double cylinder fixed at the two ends of the lower fuselage, open the lower fuselage around the shield, can see the double-link balance structure, the motor and oil pump suspended in the fuselage Externally, the hydraulic system is integrated inside the tank. The precision automatic cutting machine is more stable and durable than the ordinary automatic cutting machine. Here, I notice that the obvious difference between the two types of machines is that the normal movement of the material when the material is punched and the movement of the moving head is lower than the normal type; the moving head moves up and down together with the upper body is a precision type.

Second, the conveyor belt is divided into front and rear and full package.
1.The front and rear separation type of the conveyor belt means that the belt of the front feeding portion and the belt of the rear receiving portion are separated, and the intermediate punching area is performed on the rubber sheet; that is, the cutting die is in the rubber sheet when punching Before and after the punching, the conveyor belt is only responsible for conveying the material. This has the advantage that the belt can be replaced only periodically, but the disadvantage is that the soft material cannot be cut normally because the feed material pushes forward. When the material is wrinkled due to the frictional resistance with the rubber sheet, the material cannot be cut.

2, the whole package conveyor belt means that the front and rear conveyor belts and the cutting position are rotated by a belt. The advantage of this structure is that any material can be cut, even if the soft material will be sent out simultaneously with the belt. The disadvantage is that the cost is relatively high, and the belt is easily worn on the belt, the belt is troublesome, and the belt automatic correcting device is required.

Third, the material is divided into flakes and rolls;

sheet material requires a longer table surface in the front feeding section, so that longer material can be used to shorten the number of times of discharging, and the coil material does not need a longer table, only the need for the rack. When the material allowance is small and the cutting precision is high, it is necessary to add a correcting device on the discharge rack so that the deviation of the feed does not exceed the material allowance, and each layer of the material must be equipped with a correcting device. The cost is higher. The above is only a rough introduction to the general structure and configuration of the automatic cutting machine. For example, the accessories and configurations of some details can be selected to suit your needs. Finally, Gerson often reminds me: Do not buy machines with abnormal prices, for reasons you understand!
