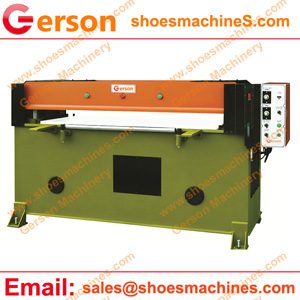

Hand Sheet Material Feed Die Cutting Press Machine

Gerson hand sheet material feed die cutting press machine is for die cutting the soft and semi-rigid sheet material by hand feed .These material is from leather,fabric,paper,cardboard,foam,PVC,plastic,ABS,PC film,rubber,cork sheet etc.,Gerson also have die cutting press for the roll feeding ,And the automatic feeding and continuous die cutting machine.

Manual beam cutting machine for the big area .

Hand Sheet Material Feed Die Cutting Press Machine
Hand Sheet Material Feed Die Cutting Press Machine

1.Using double fuel tanks and precision four-post self auto-balancing linkage guarantees the same cutting depth of each cutting position.
2. With special setting mechanism and in conjunction with cutting knife/die and cutting  depth setting, the travel adjustment is simple and accurate.
3.The central oil supply automatic lubricating system guarantees machine precision   and prolongs service life of machine.
4.Gerson can manufacture and design the customised, automatic, large area die cutting press.Gerson have 25 tons to 500 tons cutting force and cutting table size from 500mm*500mm to 3000mm*3000mm

Model GRB(C)-25T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Distance between upper press board andworktable(mm) 50-240
Cutting area(mm) 1250×600,700,800,900,1000,1200, 1500
1470×600,700,800,900,1000,1200, 1500
1600×600,700,800,900,1000,1200, 1500
Motor power 1.5 to 22KW
Machine Net weight (KG) 1600 to 16500
1700 to 17500

For the  small size sheet ,the following swing arm cutting press for mini size.

Hand Sheet Material Feed Die Cutting Press Machines

1.Various cutting force and cutting size for the small sheet pieces.
2.Easy operation and low noise .
3.Double hand operation makes safe and easy.
4.Any size or special requirement ,welcome to contact us.

Model GSB,GR,GRA model
Maximum Cutting Force 8-30 tons
Cutting speed 0.085m/s
Adjustable stroke 5-180mm
Tension distance 60-250mm
Cuttting table size 800,900,1000,1200×400,500mm
size 660×780×1500mm or more
Motor Power 0.75KW,1.1KW
Net Weight (N.W.) 450Kgs-1100Kgs
