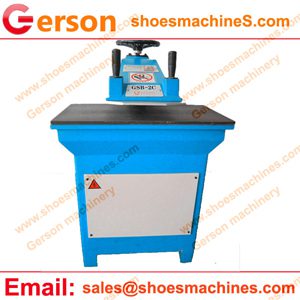

Hand operated hydraulic press 10 tons

Gerson hand operated hydraulic press  10 ton means that the hydraulic press have 10 ton cutting force by hand operation.This hydraulic press for the small and medium pieces of soft and semi-rigid material:leather ,fabric,paper,rubber, plastic,PVC,ABS,PC,foam etc,,

Hand operated hydraulic press 10 tons
Hand operated hydraulic press 10 tons

1.Easy operation,solid strong construction .
2.Double hand operation with coutting die so that can die cuting any shapes of material.
3.It is hydraulic driven make the machine more powerful and easy operation .
4.Double hand make the safe for the operator and with very lowr consumption.
5.Custom build cutting table and cutting force welcome.we also offer custom sizes according to your requirements.

Cutting area 800,900*400,500mm
Max cutting force 10tons (others 8-28tons )
Motor Power 2HP
Stroke 90mm
N.W. 470Kg
G.W. 500kg
Color Custom build
Arm Width 350*400mm( others available)
Voltage three/single phase,380v/220v/110V
Hydraulic oil 46# 48# 68#
Dimensions 900*760*1260mm
Packing size 1000*860*1500mm
