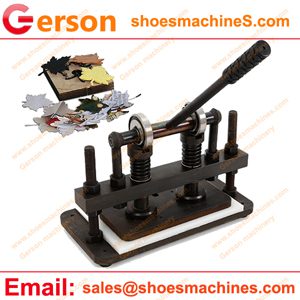

Gerson Hand operated clicker press is manual hand die cutting press machine that used for cutting most small things such as leather,fabric,paper,rubber,plastic,cork,foam,film ,EVA,felt etc.,
It is opeated by your hand .quick and fast.If you donot have a hydraulic clicker .This small clicker can be your good choice.
Custom build size welcome to contact us for further information.
| Model | Gerson GMB |
| Maximum Cutting Force | 0.5ton,1 ton ,2 ton,3 ton,4 ton,5ton |
| Cutting speed | based on your hand |
| Adjustable stroke | 12mm ,50mm or more |
| Tension distance | 10-100mm or more |
| Upper beam size | 200×100mm to 500mm×500mm |
| Cutting table size | 200×100mm to 500mm×500mm |
| Net Weight (N.W.) | 550Kgs to 18000kgs |

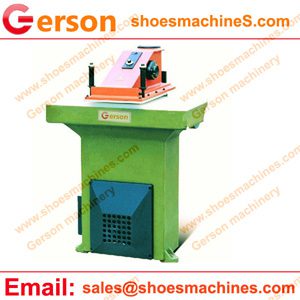

Gerson clicker press that operated by double hand.It is hydraulic driven type Electro-hydraulic clicker press for die cutting leather,fabric,paper,rubber,plastic,cork,foam,film etc.,
1.It can die cut single layer or multiple-layers
2.The clicker press head descends under hydraulic power to die cut shape from single or multiple layers of material by cutting knife/die.
3.It can be easily moved (or swung) to one side by the operator in order to gather cut pieces and re-position the tool for the next cut.
4.The whole machine uses self-lubricating system to reduce wear and extend the service life of the machine.
5.The cutting force and cutting area can be custom build according to the requirement.
| Model | GSB,GR,GRA model |
| Maximum Cutting Force | 8-30 tons |
| Cutting speed | 0.085m/s |
| Adjustable stroke | 5-180mm |
| Tension distance | 60-250mm |
| Cuttting table size | 800,900,1000,1200×400,500mm |
| size | 660×780×1500mm or more |
| Motor Power | 0.75KW,1.1KW |
| Net Weight (N.W.) | 450Kgs-1100Kgs |
