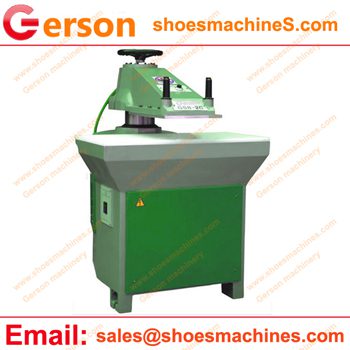

GSB swing arm cutting machine

GSB swing arm cutting machine is Gerson GSB clicker press machine .It is the nomal type die cutting machine .And used for many soft and semi-hard material die cutting including most foam ,paperboard ,cardboard,rubber sheet,plastic sheet ,cork sheet ,fabric roll,eva ,epe ,xpe ,eva etc.,.

GSB swing arm cutting machine
GSB swing arm cutting machine

1.Light and flexible swing arm of GSB model die cutting machine can be multi-layers cutting materials of these material by the die cutting mold or cutting die.
2.This GSB swing arm cutting machine is very simple and convenient to adjust the height of swing arm by handle.
3.It is easy for operation ,no special training required .Low noise and maintainance.
4.Adjusting the position of swinng arm by the hand wheel ,achieving the optimal cutting position. Enhance the work efficiency and prolong the service life.
5.Products of special specification can be customized by Gerson ,such as hydraulic pressure ,cutitng table size ,stroke distance etc.,

Model GSB-10/12/14/15/16/18/20/25
Cutting Force 10,12,14,15,16,18,20,25 Tons
Sway Arm Width 330X450,350X450,450X550mm
Stroke Adjustment 5-75mm
Range between working table 60-140mm
Table Area 900X400mm,1000X500mm
Electric Supply Voltage 3×440/415/400/380/220V, 50/60Hz
Motor Power 0.75kw,1.1kw,1.5Kw
Packing Size(LXWXH) 1100X1100X1700mm
Weight 500/650/1000/1100kg
Hydraulic oil (46#) 50 Liters
