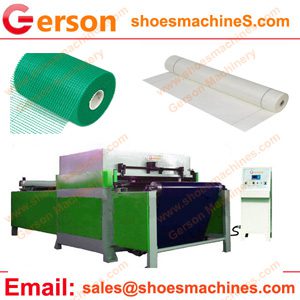

Glass Fiber Mesh Cutting Machine

Gerson die cutting machine design and manufacture for Glass Fiber Mesh as well as the following materials including:Seat Covers, fiberglasss creen, Dash Mats, Fiberglass Mesh Fabric , Exterior insulation fiberglass mesh,Fiberglass cloth ,Air Bags etc.,3D Spacer Mesh is textile fabric with holes knit into the weave which makes it breath more and creates a cool, dry and comfortable fabric.

Glass Fiber Mesh Cutting Machine
Glass Fiber Mesh Cutting Machine

1.From the smallest 25 Ton to the largest 500 Tons.
2.Cutting are from 800x500mm to any size according material requirement.
3.Die Cut materials in single or multiple layers
4.Blade upward or downward cutting
5.Four column, with two cylinder construction
6.Double mechanical balancing system
7.Even cutting and full power across complete cutting area
8.Heavy duty construction
9.Low deflection
10.Two stage press closure reduces size variation or distortion in 12.thick or multi-ply material applications
11.Steel to steel cutting available with optional equipment
12.Accept customized requirement .
Option equipment tools:
1.Inboard and outboard material conveyors
2.Manual tool rails
3.Pneumatic adjustable tool rails
4.Board rails to clamp cutting board to press head
5.Material feed rollers
6.Automatic knock-out systems
7.Material alignment
8.Automatic cutting pad shifter
9.Edge sensing
10.Automatic tool changing
11.Tool racking
12.Material feed gantries and many other options.

Model GRB(C)-25T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Range between working table 50-240mm (Upper to Bottom Table)
Stroke Adjustment 0-170mm
Cutting area(mm) (500-3000)X(500-3000)mm
Based on your material and die
Example: 2000X600mm etc.,
Motor power 1.5 to 22KW
Electric Power 220V/380V/415V,50-60hz etc.,
Machine Net weight (KG) 1600 to 16500
1700 to 17500
