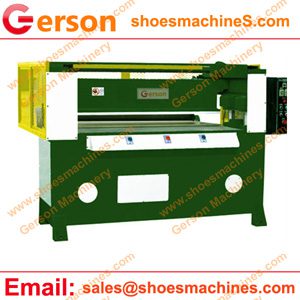

glass cloth and pouch die cutting machine

Gerson glass cloth and pouch die cutting machine for making glass cloth ,glass pouch etc.,This kind of die cutting machine can also be cutting for microfiber pouch, microfiber cleaning pouch,eyeglasses pouch/sunglasses pouch, microfiber drawstring pouch, glasses pouch, iPhone pouch, microfiber phone pouch, mobile pouch etc.,

glass cloth and pouch die cutting machine
glass cloth and pouch die cutting machine

Glass cloth and pouch die cutting machine features:

1.The upper receding beam or head can be moved forwards and backwards and the distance is fine adjustable for the convenience of placing cutting materials.
2.Cutting area same as the beam/head area ,so it is great for large cutting dies.
3.The cutting material remains stationary during the receding cutting.
4.Larger head, bed and tonnage needs can be custom ordered.

Option equipment tools:

1.Inboard and outboard material conveyors
2.Manual tool rails
3.Pneumatic adjustable tool rails
4.Board rails to clamp cutting pad to press head
5.Material feed rollers
6.Automatic knock-out systems
7.Material alignment
8.Automatic cutting pad shifter
9.Edge sensing
10.Automatic tool changing
11.Tool racking
12.Material feed gantries and many other options.

Model Maximum Cutting power(ton) Area of work table(mm) Press Board Stroke      range Distance between upper pressing board and worktable Motor power Machine dimensions(mm) Net weight
GRH-35 350KN(35T) 1600*610mm 1600*600mm 0-110mm 60-160mm 3KW 2320*1400*1520mm 2400kg
GRH-500 500KN(50T) 1600*610mm 1600*600mm 0-110mm 60-160mm 4KW 2320*1600*1720mm 4000kg
GRH-80 800KN(80T) 1600*820mm 1600*800mm 0-120mm 60-180mm 4KW 2320*1600*1720mm 5500kg
GRH-120 1200KN(120T) 1600*820mm 1600*800mm 0-120mm 60-180mm 5.5KW 2320*1600*1720mm 6500kg

**Cutting Force more than 120T or upwards can custom made.
**Cutting Bed more than 1600x800mm or upwards can custom made.
