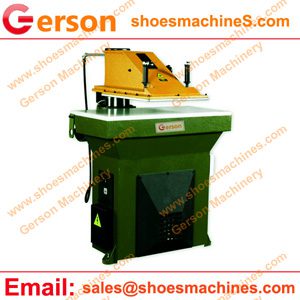

Gerson clicker press

Gerson clicker press is most famous clicker press manufacturer and designer ,with many years development,there have thousands of customers .Gerson develop their own brand and OEM manufacturing with other brand of clicker press.

Gerson clicker press
Gerson clicker press

1.Gerson clicker press have small 8 tons to big 28 tons swing arm clicker press.These swing arm type press,with very easy operation for cutting out most small parts from soft and semi-rigid material.

2.All of these clicker presses are hydraulic driven using top quality hydraulic system ,Gerson means high quality.

3.Varius of upper beam can meet different size of cutting die/tools ,And can die cut out any shapes and pattern by most standard cutting knife/die/tool.

4.Gerson accept any special requirement for manufacturing and designs .OEM ,agent and final customers welcome to contact us .

5.These clicker press most for the following material and products.For more big size ,could see the other die cutting machine.

Can be for sheet or roll material :
Leahter , textiles, plastics, rubber, foam, composites, paper and paperboard, wood leather, cork, felt,  gaskets, filters, abrasives, shoe components, envelopes, medical supplies, packaging, sponges, caps, linings, balls, stickers, leather goods, toys, etc…

Model GSB,GR,GRA,GRB serials
Maximum   Cutting Force 8Tons-500Tons or More
Cutting speed 0.085m/s
Adjustable stroke 5-300mm or more
Tension distance 60-350mm or more
Cuttting table size 650×330mm to 3000mm×2500mm
size 660×780×1500mm to 2800×3200×1700mm
Motor Power 0.75KW to 22Kw
Net Weight (N.W.) 550Kgs to 18000kgs
