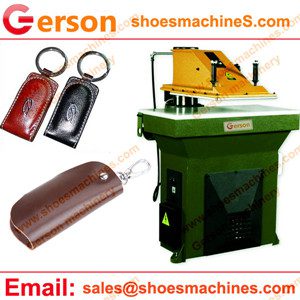

Genuine Leather Key Holder cutting machine

Genuine Leather Key Holder cutting machine is the die cutting machine for making Genuine Leather Car Key Holder,Genuine Leather Card Bag,Key Chain Wallet Case,Genuine Leather Key Ring,PU leather key pouch etc.,

Genuine Leather Key Holder cutting machine
Genuine Leather Key Holder cutting machine

1.This kind leather cutting machine can die cut any nomal or custom shapes by the cutting die/knife/mould from leather or similar material: plastic ,leather ,foam ,nylon,textile,cardboard ,synthetic ,cork,paper etc., for cutting one or several layers of sheet materials.
2.Save labor ,easy operation,strong cutting power ,prompt cutting power and easy to maintenance.
3.The stroke-setting mechanism is easy and quick for high-low cutting die adjustment.
4.simply accessible micro-adjustment device for optimum cutting point then the cutting die and cutting board are serviceable.
5.Automatic lubrication system lubricates it for each operation ,low damage anddelay validity of machine operation.
6.Any custom build machine can be on request.

Gerson also have from 8 ton ,10 ton ,12 ton ,15 ton ,20 ton ,27 ton small size cutting machine .Also have big size upto 500 ton cutting machine .

Model GRA-220 GRA-270 GRA-270M GRA-270L
Maximum cutting force 22T 27T 27T 27T
Table area 900×430mm 1000×500mm 1000×500mm 1000×500mm
Swing arm width 370mm 370mm 500mm 610mm
Cutting stroke 90mm 90mm 90mm 90mm
Motor power 1.1KW 1.5KW 1.5KW 1.5KW
Electric Supply Voltage 3×440/415/400/380/220/200V, 50/60 Hz
Single phase 240V/220V, 50/60 Hz
Packing size 1050×1000×1500mm 1150×1200×1500mm 1150×1200×1500mm 1150×1200×1500mm
N.W(with oil) 650kg 960Kg 1050kg 1200kg
G.W 740kg 1120Kg 1210kg 1360kg
