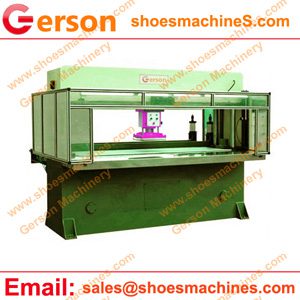

gasket travelling head cutting machine

Gerson travelling head cutting machine for gasket material including: rubber gasket, sponge gasket,  EPDM,PU,PE Foam,compressed fibre gasket and PTFE gasket materials etc.,

gasket travelling head cutting machine
gasket travelling head cutting machine

The gasket materials die cut by travelling head press is manual or automatic .The cutting bed on our Travelling Head Press is max 610mm x 2.5M or more allowing you to produce individual cut parts up to this size.

1.Can cut sheets and rolls in single or multiple layers Cnest multiple shapes to minimize scrap)
2.Hign speed,very quiet,easy operation
3.Special pressure switch equipment and micro-electronic circuitry for accurate setting of strokes.
4.Very quickly motion of Cutting head/trolley makes the machine extremely productive.
5.Cutting area and cutting head size can custom made.
5.We also have the other models die cutting machine for gaskets
7.Special requirement welcome to contact us.

Model GRM(A)-25T to 200T
Max cutting force(T) From 25 Tons to 200 Tons
Range between working table 50-240mm (Upper to Bottom Table)
Stroke Adjustment 0-170mm
Cutting table width(mm) 1800~2500mm or more
Based on your material and die
Example: 1600X600mm etc.,
Cutting Head Movable trolley 500×500 to 1000x1000mm
Motor power 3kw to 22KW
Electric Power 220V/380V/415V,50-60hz etc.,
Machine Net weight (KG) 1600 to 16500
1700 to 17500

Gerson can make the cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,etc.,
