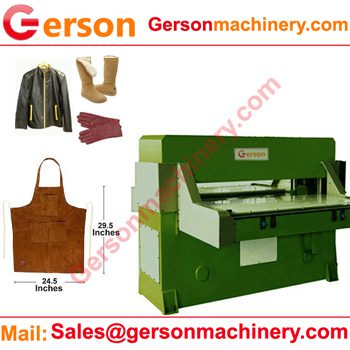

Garment Leather Clicker Press die cutting machine

Garment Leather Clicker Press die cutting machine is Gerson design and manufacturing swing arm die cutting machine for cutting garment leather ,leather Garment & Bag Leather Hides, cowhide, lamb leather etc.,

Garment Leather Clicker Press die cutting machine
Garment Leather Clicker Press die cutting machine

1. It is good machine for making garment and cutting leather pieces.You donot need adjust adjustment of the cutting head or other, can be easily pushed to a larger operating room.Simple and efficient cutting point setting.Operation with double hands.
2.It is working with the cutting die ,so it can die cut any shaps that you need .Only make the die and mold which could made by Gerson .if you want to die cut any shapes.
3. In fact the Gerson machine can cut any variety of materials for garment factory .You will it can cut the collar ,sleeve etc.,
4. It can die cut out several layers or multi layers ,so it can increse the production capacity.
5. Special specifications include long stroke, autoamtic feed ,auto cutting ,hydraulic pressure,cutitng bed size etc., all can custom built.

Model GRB(C)-25T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Range between working table 50-240mm (Upper to Bottom Table)
Stroke Adjustment 0-170mm
Cutting area(mm) (500-3000)X(500-3000)mm
Based on your material and die
Example: 1600X700mm etc.,
Motor power 1.5 to 22KW
Electric Power 220V/380V/415V,50-60hz etc.,
Machine Net weight (KG) 1600 to 16500
1700 to 17500
