Full Fixed Beam Press

Gerson full fixed beam press is  one of beam die cutting press for die cutting non-metal material including soft material and semi-rigid material in sheet or roll feeding.There also have movable beam press which the beam can be moved .

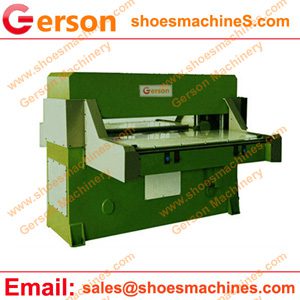

Full Fixed Beam Press
Full Fixed Beam Press

1.The fixed beam  can die cut the sheets or rolls of material in single or multiple layers, using all standard cutting tool formats – strip steel, wood forme or forged steel.

2.Four column, twin cylinder construction and Double mechanical balancing system

3.Manual feed material or single/double sliding table feed material .

4.Gerson can manufacture and design the customised, automatic, large area beam die cutting press.

5.25 tons to 500 tons cutting force and cutting table size from 500mm*500mm to 3000mm*3000mm

Model GRB(C)-25T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Distance between upper press board andworktable(mm) 50-240
Cutting area(mm) 1250×600,700,800,900,1000,1200, 1500
1470×600,700,800,900,1000,1200, 1500
1600×600,700,800,900,1000,1200, 1500
Motor power 1.5 to 22KW
Machine Net weight (KG) 1600 to 16500
1700 to 17500
