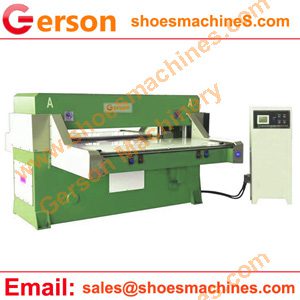

Four column hydraulic cutting machine

Four column hydraulic cutting machine is one of Gerson cutting machine designed and manufactured by Gerson machinery.It is widely used for die cutting many material in many industry .

Four column hydraulic cutting machine
Four column hydraulic cutting machine

1.The machine equiped with four column or post ,top hydraulic system to make sure the high precision and safety for cutitng action.
2.It is applicable for cutting most soft and semi-rigid material includng: abrasive products, plastic and insulation material,Leather work,shoemaking,rubber mats,paper ,cardboard,eva,foam ,sponge, Packaging,Fabric Toys,Stationery,Automobile Industry etc.,
3.The machine can be equiped with single autoamtic feed and double autoamtic siling table feed for sheet material .also can be equiped with roller feeder system for roll material.
4.The machine table size ,working pressure ,feed system all can custom built based on your request.
5.Gerson also have other similar machinery ,if you have any question ,please contact us at any time.

Model GRB(C)-25T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Range between working table 50-240mm (Upper to Bottom Table)
Stroke Adjustment 0-170mm
Cutting area(mm) (500-3000)X(1000-3000)mm
Based on your material and die
Example: 1600X600mm etc.,
Motor power 1.5 to 22KW
Electric Power 220V/380V/415V,50-60hz etc.,
Machine Net weight (KG) 1600 to 16500
1700 to 17500

Gerson can make die cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,feeding type etc.,
