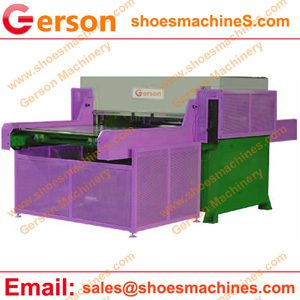

Gerson four column double side hydraulic automatic feeding die cutting machine is die cutting machine with automatic double side feeding system.
four column double side hydraulic automatic feeding die cutting machine
This most used for large area soft material die cutting with sheet feeding or roll feeding .The cutting area can from 1250mm ×500mm to 2500mm×2500mm.The cutting power or pressure from 30 tons to 500 tons.
1.Using double fuel tanks and precision four-post self auto-balancing linkage guarantees the same cutting depth of each cutting position.
2.The pressing board of cutting carries out slow cutting when it contacts the die cutter, which can make that there is no size error between the uppermost layer and lowermost layer of cut materials.
3.Precise cutting balance can effectively reduce the loss of knife mold and cutting plate.
4.The central oil supply automatic lubricating system guarantees machine precision and prolongs service life of machine.
5.Double-side automatic feeding system can be allocated to enhance the production efficiency of machine twice or thrice.
6. The following equipment tools can improve the productivity for customers choice :Automatic feeding material system and Inboard and outboard material conveyors ,material feed rollers and automatic knock-out systems
Option equipment tools:
1.Inboard and outboard material conveyors
2.Manual tool rails
3.Pneumatic adjustable tool rails
4.Board rails to clamp cutting pad to press head
5.Material feed rollers
6.Automatic knock-out systems
7.Material alignment
8.Automatic cutting pad shifter
9.Edge sensing
10.Automatic tool changing
11.Tool racking
12.Material feed gantries and many other options.
| Model | GRB(C)-25T to 500T |
| Max cutting force(T) | From 25 Tons to 500 Tons |
| Distance between upper press board andworktable(mm) | 50-240 |
| Cutting area(mm) | 1250×600,700,800,900,1000,1200, 1500 |
| 1470×600,700,800,900,1000,1200, 1500 | |
| 1600×600,700,800,900,1000,1200, 1500 | |
| Motor power | 1.5 to 22KW |
| Machine Net weight (KG) | 1600 to 16500 |
| 1700 to 17500 |
