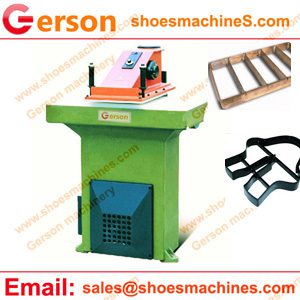

Forged Die Cutting Hydraulic Press Machine

Forged Die Cutting Hydraulic Press Machine equipped Forged dies that is widely adopted in the cutting operation of sheet materials consisting of leather, rubber, etc.

Forged Die Cutting Hydraulic Press Machine
Forged Die Cutting Hydraulic Press Machine

1. Gerson have a series of forged dieand steel rule die cutting press covering different size.
2. For small type, the die is separated from the press board. Once the die is appropriately placed on the material, press board will instantly come down to exert pressure to promote the cutting operation.
3. For larger type, all that is needed is to press the upper board with die directly on the material.
4. The machine does a good job by virtue of hydraulic drive and high-quality parts.
5. Different feeding systems including single side or double side sliding table system, incremental feeding system etc. are available for selection.
6. Welcome to contact us. All your suggestions will be taken into consideration.

Model GSB,GR,GRA model
Maximum Cutting Force 8-30 tons
Cutting speed 0.085m/s
Adjustable stroke 5-250mm
Open Dayight 60-300mm
Cuttting table size 800,900,1000,1200×400,500mm
size 660×780×1500mm or more
Motor Power 0.75KW,1.1KW
Net Weight (N.W.) 450Kgs-1100Kgs
