Footwear components die cutting press

Gerson die cutting press for Footwear components ,such as  shoes insoles, insole socks, uppers, straps,small pieces etc., the material is leather,fabric,felt, latex,EVA, etc., The following cutting press widely used by many workshop.

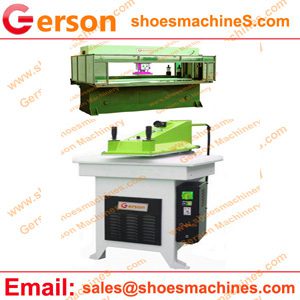

Footwear components die cutting press

1.clicker press:

From 8Ton small die cuting machine to 28Ton cutting force with cutting table can max 1000mm*1000mm for choice.

Model GSB-8/10,GSB-2C,GR,GRA
Maximum   Cutting Force 8Tons,10,12,14,15,16,18,20,22,25,27,28 ton
Cutting speed 0.085m/s
Adjustable stroke 5-180mm
Tension distance 60-190mm
Cuttting table size 650×330mm,900×430mm,1000×500mm
size 660×780×1500mm to 1350×1180×1700mm
Motor Power 0.75KW to 1.5Kw
Net Weight (N.W.) 550Kgs to 1200kgs











2.Travelling head press

Feed the material in roll form as well as sheets.from 25Ton to 100Ton cutting force with cutting table  2500mm x 1000 mm ,and the travelling head 1000mm x 1000 mm.

Model GRMA-25,30,40,50,60,80,100
Max Cutting Force 25 to 100 tons
Cutting table Widths 1800~2500mm or more
Cutting Head/Movable trolley 500 x 500mm up to 1000 x 1000mm
Gerson can make the cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,etc

Special requirement welcome to contact us.
