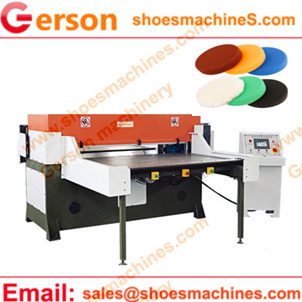

Foam Polish Buff Pad Cutting Machine

Foam Polish Buff Pad Cutting Machine is the foam machinery for cutting foam pad,foam sheet ,pad sheet material,small size such as :Foam Polish Buff Pad ,Grip Foam Polish Buff Pad etc.,

Foam Polish Buff Pad Cutting Machine
Foam Polish Buff Pad Cutting Machine

1.It can die cut our any size of foam pad from small to big size.
2.Double oil cylinder and precise double-crank connecting rod blancing mechanism can guarantee the cutting depth at every position is the same when doing cutting job.
3.The cutting force from small type pressure to big cutting pressure ,the cutting area small szie to big size can custom design and build by Gerson.
4.the feed type also can be custom built based on your production requirement.
5.More information of the machine or any request ,please contact us any time.

Model GRB(C)-25T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Range between working table 50-240mm (Upper to Bottom Table)
Stroke Adjustment 0-170mm can be customized
Cutting area(mm) (500-3000)X(1000-3000)mm
Based on your material and die
Example: 1600X600mm etc.,
Motor power 1.5 to 22KW
Electric Power 220V/380V/415V,50-60hz etc.,
Machine Net weight (KG) 1600 to 16500
1700 to 17500
