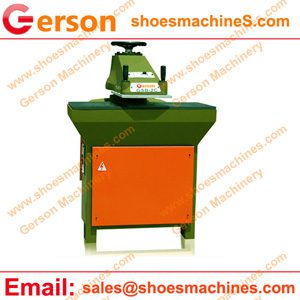

Gerson Foam bra cup pad cutting machine is die cutting machine for bra cup pad production.
For most bra factory ,they like to use swing arm cutting machine for their production.
1.The machine is easy to operate for die cutting bra cup with material foam or others.
2.It can die cutting different shapes of bra cup by using various cutting die/knife.
3.The cutting table from small size of 600mm*360mm to 1200mm*500mm ,if need more larger cutting table ,it can choose the other models of Gerson machine.
4.Cutting for can be for 8 tons to 30 tons for one layers or muti-layers.
5.Special requirement welcome to contact us.
|
Model |
GRA,GSB,GR |
|
Max cutting force |
8,10,12,14/15/16,18,20,25,27,28 tons |
|
Working area |
650,800,900,1000,1200X500,600mm |
|
Swing arm width |
370mm,500mm,600mm |
|
Cutting stroke |
90mm |
|
Motor power |
0.75KW-1.5KW |
|
Electric Supply Voltage |
3×440/415/400/380/220/200V, 50/60 Hz |
|
Single phase 240V/220V, 50/60 Hz |
|
|
Machines dimensions |
1000X1020X1410mm |
|
Packing size |
1100X1100X1600mm |
|
N.W(with oil) |
480-980kg |
|
G.W |
500-1000kg |
