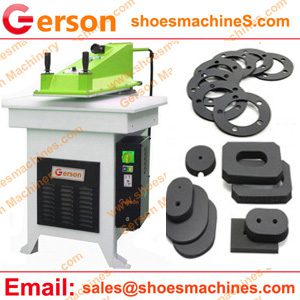

Foam and Sponge Gaskets Pad Die Cutting Machine

Gerson machinery have many gaskets machinery for die cutting Foam and Sponge Gaskets Pad.These Die Cutting Machine is also for making Neoprene sponge gaskets, EPDM sponge gaskets and polyethylene foam gaskets Closed Cell EVA foam Gasket,Polyurethane Foam Gasket,Microcellular Urethane Foam Gasket,Poron® Foam Gasket,Polyethylene Foam Gasket,Cross-linked Polyethylene Foam Gasket,Polystyrene Foam Gasket,Volara® Foam Gasket,Polyester Foam,Silicone Foam Gasket,Ensolite® Foam Gasket,Multi-Planar EMI Foam Gasket,Filter Foam Gasket,Sound Foam Gasket,PVC Foam Gasket,Vinyl Foam Gasket,Convoluted Foam Gasket.These foam and sponge gasket widely used for automobile & other machinesry as sealing, shockproof, insulation, soundproof application.

 Foam and Sponge Gaskets Pad Die Cutting Machine

Foam and Sponge Gaskets Pad Die Cutting Machine

1. These machines are designed with two handle bars simultaneously, and these ergonomic models contribute a lot to the operation safety.
23. There is no difficulty for common worker to operate at all. What’s more, there is almost no noise during the operation due to little wear, thus costs little in maintain.
3. Any standard dies can be used by the machine, so various shapes can be cut out.
4.The machine can die cut out mutiply layers in sheet or rolls.
5.The cutting pressure ,working table size ,custom die feed type all can custom build based on request.Gerson have many machinery for die cut gasket or any other similar products.

Model

GR-20C

GR-27C

GR-27C/1

GR-27C/2

Max. cutting power

20 ton

27 ton

 27 ton

27 ton

Maximum stroke(mm)

80

100

100

 100

Cutting table(mm)

 900 x 430

 900 x 450

1000 x 500

1200 x 500

Arm width(mm)

 370

370

500/600

500/600

Motor power

HP. 1

HP. 1,5

HP. 1,5

HP. 1,5

Net weight with oil

Kg. 570

Kg. 780

Kg. 840

Kg. 910

Sizes about (mm)

 1000 x 900
h. 935

900 x 1000
h. 1370

1000 x 1000
h. 1370

 1200 x 1030
h. 1370

Sizes sea packing(mm)

1050 x 1085
h. 1500

1050 x 1150
h. 1570

1150 x 1150
h. 1570

1350 x 1180
h. 1570

Gross weight and volume with sea packing

Kg. 640
m1,7

Kg. 900
m1,90

Kg. 980
m2,10

Kg. 1055
m2,50
