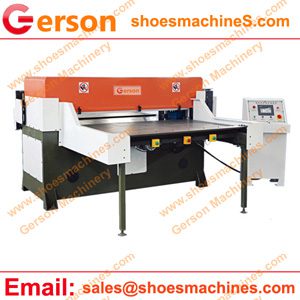

Foam and Rubber Closure Strips Die cutting Machine

Gerson Closure Strips Die cutting Machine is designed for die cutting Foam Closure Strips or Rubber Closure Strips .Normal  closure strip Flexible, semi-rigid, cross-linked panel closures that eliminate moisture absorption and water vapor transmission.The foam closure strips such as Crosslink Polyethylene foam –  most common closure material.And the rubber Closure Strips material such as Neoprene-blend Rubber – meet self-extinguishing material,EPDM Rubber – excellent for applications where UV and Ozone are significant.

Foam and Rubber Closure Strips Die cutting Machine
Foam and Rubber Closure Strips Die cutting Machine

1.Hydraulic driven make the machine working quietly and quickly.Easy operator set up and speed to meet changing production schedules.

2.Extremely robust construction maintains parallelism ensuring high precision punching accuracy.Four post and two cylinders with heavy-duty weldments.  Internal mechanical leveling and balancing system to ensure head and bed parallelism and even distribution of load over the entire head and bed of the press.

3.From the smallest 25 Ton for the largest 500 Tons and up on request, Gerson Precise cutting machine are adaptable to some lots of applications.

4.Feed system options to increase capacity and reduce material cost.

  • Single or Double , Manual or Automatic slide table
  • Pneumatic pinch rolls
  • Clamping beam feeds
  • Inboard and Outboard motorized conveyor belts
  • Continuous cutting belts
  • Sheet feeds
  • Edge sensing

4.Gerson die cutting machine is also for diecut these material such as  Polyurethane Foam for bedding, cushioning, protective packaging or sound studios, to Polyethylene Foam for instrument cases, construction seals, or industrial applications, to Silicone, Neoprene or EPDM rubber for gaskets, Carrington stocks materials to meet your needs.

Model GRB(C)-25T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Range between working table 50-240mm (Upper to Bottom Table)
Stroke Adjustment 0-170mm can be customized
Cutting area(mm) (500-3000)X(1000-3000)mm
Based on your material and die
Example: 1600X600mm etc.,
Motor power 1.5 to 22KW
Electric Power 220V/380V/415V,50-60hz etc.,
Machine Net weight (KG) 1600 to 16500
1700 to 17500
