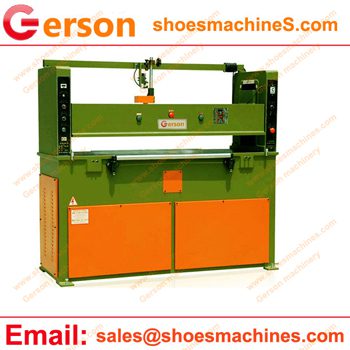

Flatbed Steel Rule Die Clicker Press is the flatbed steel rule die cutting machine which is good for die cutting the non-metal material such as :leather ,paper,fabric,rubber ,plastic ,foam etc.,
1.It works with the steel rule die .Gerson have own steel rule die manufacturing to make these steel rule die or any othe dies molds.
2.It is flatbed ,so it is good for the sheet material .Also it can work with the roll material .
3.This flate bed steel rule die cutting machine is very easy for operation by worker’s double hand. So it is safe and easy for using. And it is very little noise because of the hydraulic driven system .
4.The cutting force ,cutting bed size ,hydraulic pressure ,feed type etc., all can customized by Gerson based on your requirement or material production.
| Model | GSB,GR,GRA,GRB serials |
| Maximum Cutting Force | 8Tons-500Tons or More |
| Cutting speed | 0.085m/s |
| Adjustable stroke | 5-300mm or more |
| Tension distance | 60-350mm or more |
| Cuttting table size | 650×330mm to 3000mm×2500mm |
| size | 660×780×1500mm to 2800×3200×1700mm |
| Motor Power | 0.75KW to 22Kw |
| Net Weight (N.W.) | 550Kgs to 18000kgs |
