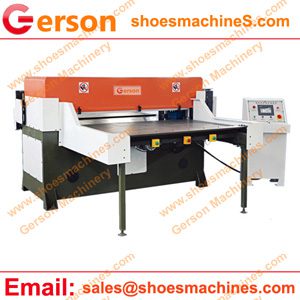

Fixed head press-fixed full head cutting press

The fixed head press design and manufactured by Gerson Machinery.Gerson now become the market leader in the manufacturing of customed, automatic,small ,medium large area, full head press cutting systems .More and more company use Gerson machinery for their production.

1.The cutting tablle surface and the upper beam is the same .so it can be for high cutting power and large cutting die .The die can be placed on the table or mounted under the beam.

2.Gerson beam press are suitable both for soft and semi-rigid materials single and multiply layered in rolls and sheets.

3.The vast majority of fixed beam have been hydraulically powered and coupled with a unique balancing system to ensure the head and bed stay parallel at all time for maximum cutting accuracy.

4. The feed type such as manual feed,auto sliding table,fully automatic cutting belt with pinch and grab pincers and powered incremental board etc.,

5.For special applications,Gerson welcome other customized feed systems and custom build are available upon request.

Model	GRBC-25T to 500T
Max cutting force(T)	From 25 Tons to 500 Tons
Distance between upper press board andworktable(mm)	50-240
Cutting area(mm)	1250×600,700,800,900,1000,1200, 1500,2000
	1470×600,700,800,900,1000,1200, 1500,2000
	1600×600,700,800,900,1000,1200, 1500,2000
Motor power	1.5 to 22KW
Machine Net weight (KG)	1600 to 16500
	1700 to 17500

full head press, hydraulic beam press
