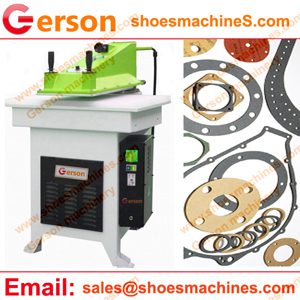

Fish Paper Fiber Gasket Die Cutting Machine

Gerson gasket cutting machine is the special die cutting machinery for die cutting most kinds fo gasket material  such as following material : Fish paper,Vulcanized Fiber,Armstrong Paper,Vegetable Fiber etc.,

Fish Paper Fiber Gasket Die Cutting Machine
Fish Paper Fiber Gasket Die Cutting Machine

1.The machine can die cut any size paper gasket or similar material(rubber,cork,film,Sponge) gasket by cutting die .
2.The machine is easy operation with double hand ,quick and high precision .
3.It is can die cut for sheet or roll material .
4.The machine is hydraulic driven ,built with high quality components and automatic hydraulic self-lubricating prolonging the life of machine.
5.Gerson have many models for gasket cutting production and can custom build machinery for different production requirement ,from maual to fully automatic CNC machinery etc.,The above paper gasket cutting machine can custom build such as press pressure ,working table size ,stroke ,upper beam size etc.,

Model

GR-20C

GR-27C

GR-27C/1

GR-27C/2

Max. cutting power

ton. 20

ton. 27

ton. 27

ton. 27

Maximum stroke(mm)

80

100

100

 100

Cutting table(mm)

 900 x 430

 900 x 450

1000 x 500

1200 x 500

Arm width(mm)

 370

370

500

600

Motor power

HP. 1

HP. 1,5

HP. 1,5

HP. 1,5

Net weight with oil

Kg. 570

Kg. 780

Kg. 840

Kg. 910

Sizes about (mm)

 1000 x 900
h. 935

900 x 1000
h. 1370

1000 x 1000
h. 1370

 1200 x 1030
h. 1370

Sizes sea packing(mm)

1050 x 1085
h. 1500

1050 x 1150
h. 1570

1150 x 1150
h. 1570

1350 x 1180
h. 1570

Gross weight and volume with sea packing

Kg. 640
m1,7

Kg. 900
m1,90

Kg. 980
m2,10

Kg. 1055
m2,50
