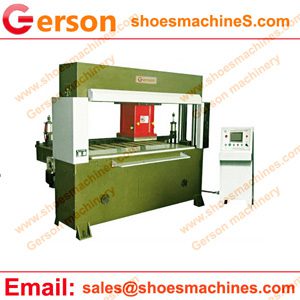

Fiberboard Insole Die Cutting Machine

Gerson fiberboard insole die cutting machine have two kinds of die cutting machine including manual feed and automatic feed die cutting machine for fiberboard insole or Memory foam activated carbon fiber insole board,Fiberboard PU insole,microfiber fabric insole,Fiberboard PU foam insole etc.,

Fiberboard Insole Die Cutting Machine
Fiberboard Insole Die Cutting Machine

The following is auto feed insole die cutting machine :

1.Die cutting machine with Auto sheet or roll feeding type or manual feed.
2.The traveling head moves left and right together with the cutting die ensures the clear view over the table.
3.It is very quick with automatic type ,And will improve the production efficiency ,so that can save time and labor cost.
4.Cutting area and cutting head size can custom made.Welcome to any special requirement for the machine .

Model GRM(A)-25T to 200T
Max cutting force(T) From 25 Tons to 200 Tons
Range between working table 50-240mm (Upper to Bottom Table)
Stroke Adjustment 0-170mm
Cutting table width(mm) 1800~2500mm or more
Based on your material and die
Example: 1600X600mm etc.,
Cutting Head Movable trolley 500×500 to 1000x1000mm
Motor power 3kw to 22KW
Electric Power 220V/380V/415V,50-60hz etc.,
Machine Net weight (KG) 1600 to 16500
1700 to 17500

Gerson can make the cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,etc.,
