Fixed Beam Press vs. Movable Beam Press: A Detailed Comparison Read More »

The post Fixed Beam Press vs. Movable Beam Press: A Detailed Comparison appeared first on Die cutting machine,hydraulic press machinery manufacturer for sale.

]]>
This Article provides an in-depth analysis of fixed beam presses and movable beam presses, focusing on their design, functionality, and applications in industrial settings, particularly for die cutting and forming operations. The information is derived from manufacturer descriptions and technical specifications, offering a comprehensive overview for users seeking to understand the differences and choose the appropriate equipment.

fixed beam press
fixed beam press

Fixed beam presses and movable beam presses are types of hydraulic or mechanical presses used primarily in manufacturing for cutting, punching, or forming materials such as leather, plastic, rubber, and textiles. These machines are essential in industries like automotive, footwear, and packaging, where precision and efficiency are critical. The distinction between the two lies in the movement capabilities of their beams, which impacts their suitability for different production needs.

Design and Structural Differences

The structural design of these presses is a key differentiator:

  • Fixed Beam Press:
    • The beam, often referred to as the upper beam or head, is fixed in its horizontal position relative to the frame. It moves only vertically to apply pressure, typically through a hydraulic cylinder.
    • This design is akin to a standard hydraulic press, ensuring stability and precision for consistent cutting depth across large areas.
    • Example specifications from manufacturers include cutting areas ranging from 500×500 mm to 2000×2000 mm, with cutting forces from 30 to 2000 tons .
Movable Beam Press
  • Movable Beam Press:
    • The beam can move both horizontally and vertically, allowing for dynamic positioning of the die over the workpiece. The horizontal movement is often described as forwards and backwards, fine-adjustable for material placement.
    • This design is particularly useful for accommodating larger dies and handling materials in both sheet and roll forms. Specifications include cutting areas from 500×3000 mm to 3000×3000 mm, with forces from 25 to 2000 tons, and custom options exceeding 120 tons .

A detailed comparison of features is presented in the following table, based on manufacturer data:



Aspect Fixed Beam Press Movable Beam Press
Also Called Fixed head cutting machine, fixed beam press Movable beam cutting machine
Description Die cutting machine with fixed beam or head, most used for large area soft material die cutting Beam cutting machine with movable beam, allows larger dies compared to other press types
Cutting Area (mm) 1250×500 to 2000×2000, e.g., 1600×600 500×3000 to 3000×3000, e.g., 1600×800, can be same as bed cutting area
Max Cutting Force (Tons) 30 to 2000 25 to 2000, can be custom made >120T
Features 1. Double fuel tanks, precision four-post auto-balancing for same cutting depth. <br>2. Slow cutting on contact, no size error between layers. <br>3. Reduces knife mold and cutting plate loss. <br>4. Central oil supply for precision and longevity. <br>5. Optional: Auto feeding, conveyors, rollers, knock-out systems. 1. Upper beam moves forwards/backwards, fine adjustable for material placement. <br>2. Cutting area same as beam/head, great for large dies. <br>3. Material stationary during receding cutting. <br>4. Larger head, bed, tonnage can be custom ordered (>1600×800mm bed).
Model GRB(C)-25T to 2000T GRH-40T to 2000T
Range Between Working Table 50-240mm 50-240mm
Stroke Adjustment 0-170mm 0-170mm
Motor Power 1.5 to 22KW 1.5 to 22KW
Electric Power 220V/380V/415V, 50-60Hz 220V/380V/415V, 50-60Hz
Net Weight (KG) 1600 to 16500, 1700 to 17500 1600 to 16500, 1700 to 17500
Material Application Textiles,Leather,Rubber,Foam,Plastics,Paper and Cardboard,Composites,Cork,Abrasives,Gasket Materials etc., Textile, Plastics, Rubber, Foam, Composites, Paper, Paperboard, Wood, Leather, Cork, Felt
Industry Products
  • Die Cutting
  • Packaging
  • Automotive component production
  • Textile and Apparel cutting
  • Footwear Manufacturing
  • Gasket and Seal production
  • Foam Fabrication
Gasket, Filters, Abrasives, Shoe Component, Sponge, Packing, Shoulder Pad, Caps, Linings, Shirt Collars, Box, Brassieres, Floor Mats, Carpets, Toys, Medical Supplies, Other Suitable Material

Functionality and Operational Differences

The operational differences stem from the beam’s movement capabilities:

  • Fixed Beam Press:
    • The fixed beam ensures consistent cutting depth and is ideal for high-volume production where the material is brought to a stationary die. Features like double fuel tanks and precision four-post auto-balancing ensure uniformity, reducing errors between layers .
    • It is particularly effective for cutting large pieces of both metal and non-metal materials in roll or sheet form, as noted by manufacturers like Gerson, ensuring large volume production capacity .
  • Movable Beam Press:
    • The ability to move the beam horizontally allows for fine adjustment of material placement, making it suitable for automatic cutting or forming operations. This is especially useful for handling both sheet and roll materials, with the material remaining stationary during receding cutting .
    • Additional features include options for larger heads and beds, custom tonnage, and applications in diverse industries, such as textiles, plastics, and leather, with specific products like gaskets, filters, and shoe components .

Applications and Use Cases

The choice between fixed and movable beam presses depends on the production requirements:

  • Fixed Beam Press: Best suited for scenarios requiring high precision and consistency, such as large-scale production of uniform parts. Its stability makes it ideal for cutting soft materials over large areas, ensuring minimal loss of knife molds and cutting plates.
  • Movable Beam Press: Offers versatility for handling larger or varied workpieces, particularly in industries needing flexibility, such as automotive and footwear. Its ability to accommodate larger dies and adjust for material placement makes it suitable for a broad range of non-metallic materials, as seen in applications like medical supplies and carpets.

Safety and Technical Specifications

Both types share similar technical specifications, such as motor power (1.5 to 22KW) and electric power (220V/380V/415V, 50-60Hz), but movable beam presses often include additional safety features, such as hydraulic locking in the upper position during machine stops or die changes, as noted in descriptions from manufacturers like Gerson .

Key Differences:

  • Beam Movement: The fundamental difference lies in whether the upper beam moves or remains fixed during the pressing operation.
  • Application: Fixed beams are often for high volume cutting, and movable beams are often used for bending, and other forming opperations.
  • Flexibility: Movable beam presses generally offer greater flexibility in terms of adjustable pressing parameters.

Conclusion

In summary, fixed beam presses are designed for stability and precision in high-volume, consistent cutting operations, with a stationary beam moving only vertically. Movable beam presses, with their ability to move horizontally and vertically, offer greater flexibility for larger dies and varied material handling, making them suitable for diverse industrial applications. The choice between the two depends on the specific production needs, with movable beam presses providing an unexpected advantage in versatility for handling a wider range of materials and sizes.

Key Citations

The post Fixed Beam Press vs. Movable Beam Press: A Detailed Comparison appeared first on Die cutting machine,hydraulic press machinery manufacturer for sale.

]]>
Label Punching Die Knife https://www.shoesmachines.com/label-punching-die-knife.html Tue, 11 Mar 2025 09:24:49 +0000 https://www.shoesmachines.com/?p=10731 Label Punching Die Knife is also known as a label cutting die,or cutting  die knife tool, label punching mold is a specialized tool used in the manufacturing and printing industries to cut labels, stickers, and other materials into specific shapes and sizes. The die itself is typically made from metal, such as steel, and has …

Label Punching Die Knife Read More »

The post Label Punching Die Knife appeared first on Die cutting machine,hydraulic press machinery manufacturer for sale.

]]>
Label Punching Die Knife is also known as a label cutting die,or cutting  die knife tool, label punching mold is a specialized tool used in the manufacturing and printing industries to cut labels, stickers, and other materials into specific shapes and sizes. The die itself is typically made from metal, such as steel, and has sharp edges that correspond to the desired shape of the label.

Label Punching Die Knife

The The label punching die knife work with a  label die cutting machine  to precisely cut labels, stickers, or other materials into specific shapes and sizes. The process involves feeding the material (such as paper, vinyl, or film) through the machine, where the cutting die applies pressure to cut the material into the desired shape.

The below video show the label die cutting machine with Label Punching Die Knife:

The label punching die knife is good for cutting the below material and products :

  • Product Labels: Cutting labels for bottles, jars, and packaging.
  • Stickers: Creating custom-shaped stickers for promotional or decorative purposes.
  • Industrial Labels: Producing durable labels for machinery, electronics, and automotive parts.
  • Packaging: Cutting shapes for custom packaging designs.

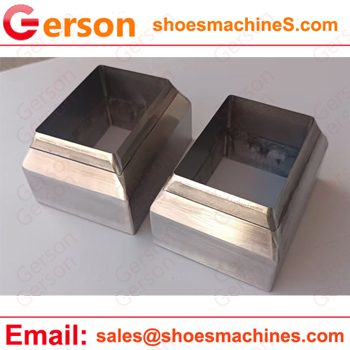

Tungsten Carbide Steel Ram Punch Cutting Dies

Gerson Label Punching Die Knife are versatile tools widely used across various industries to cut precise shapes out of different materials. Below are some of the most common types of ram punch cutting dies:

  1. High Alloy Steel Dies:
    These dies are crafted from high-quality steel that undergoes hardening and tempering processes to enhance wear resistance and durability. High alloy steel dies are an excellent choice for general-purpose cutting tasks, offering a balance of strength and longevity.
  2. Tungsten Carbide Steel Dies:
    These dies are made from steel reinforced with tungsten carbide particles, making them exceptionally hard and resistant to wear. Tungsten carbide steel dies are ideal for cutting abrasive materials or for high-volume production runs where durability and precision are critical.

Both types of dies are designed to meet specific cutting needs, ensuring efficiency and accuracy in industrial applications.Gerson accept any cutsom Label Punching Die Knife to meet your production requirement.And we also have the label die cutting machine for your choice.



The post Label Punching Die Knife appeared first on Die cutting machine,hydraulic press machinery manufacturer for sale.

]]>
Key Factors Affecting Cutting Die Lifespan https://www.shoesmachines.com/key-factors-affecting-cutting-die-lifespan.html Fri, 28 Feb 2025 03:55:08 +0000 https://www.shoesmachines.com/?p=10719 Abstract: A cutting die is a specialized tool used in manufacturing and crafting to cut, shape, or stamp materials into specific designs or patterns. It consists of a sharp blade, typically made of steel, formed into a specific shape or pattern and mounted on a sturdy base. When pressure is applied (usually by a machine), …

Key Factors Affecting Cutting Die Lifespan Read More »

The post Key Factors Affecting Cutting Die Lifespan appeared first on Die cutting machine,hydraulic press machinery manufacturer for sale.

]]>
Abstract:

A cutting die is a specialized tool used in manufacturing and crafting to cut, shape, or stamp materials into specific designs or patterns. It consists of a sharp blade, typically made of steel, formed into a specific shape or pattern and mounted on a sturdy base. When pressure is applied (usually by a machine), the die cuts through materials like paper, cardboard, fabric, plastic, or metal to produce precise shapes.

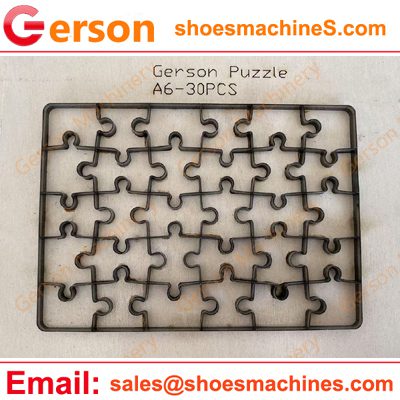

Gerson Cutstom Cutting Die
Gerson Cutstom Cutting Die

Determining the exact number of cuts a cutting die knife can make is challenging due to the numerous variables involved. However, the lifespan of a die is primarily influenced by several key factors

Key Factors Affecting Die Lifespan:
  1. Material Being Cut:
    • Paper and thin cardstock: Dies can last for millions of cuts due to low resistance.
    • Thicker materials (e.g., cardboard, plastics, fabrics): Reduced lifespan due to increased wear.
    • Abrasive materials (e.g., fiberglass, laminates): Cause rapid wear, significantly shortening die life.
  2. Die Quality:
    • High-quality steel dies: More durable and resistant to wear, lasting longer.
    • Lower-quality dies: Prone to dulling, bending, and breaking, reducing lifespan.
  3. Die Type:
    • Crafting dies (thin metal): Designed for repeated use but depend on pressure and material.
    • Industrial steel rule dies: Built for high-volume production but require maintenance over time.
  4. Machine and Pressure:
    • Proper setup: Correct pressure and alignment maximize die life.
    • Excessive pressure: Causes premature wear and damage.
  5. Maintenance:
    • Regular cleaning: Removes debris and adhesive buildup, extending die life.
    • Proper storage: Prevents damage and corrosion.
  6. Cutting Environment:
    • Clean and controlled conditions: Prolong die life.
    • Harsh environments (e.g., dust, moisture): Accelerate wear and damage.
  7. Frequency of Use:
    • High-volume production: Dies wear out faster due to constant use.
    • Intermittent use: Dies last longer with proper care.
  8. Sharpness and Maintenance of the Die:
    • Regular sharpening: Maintains cutting efficiency and extends lifespan.
    • Neglect: Leads to faster deterioration and reduced performance.
Detailed Table

Here’s a revised version of the key factors affecting die lifespan, now including a table for better clarity and organization:

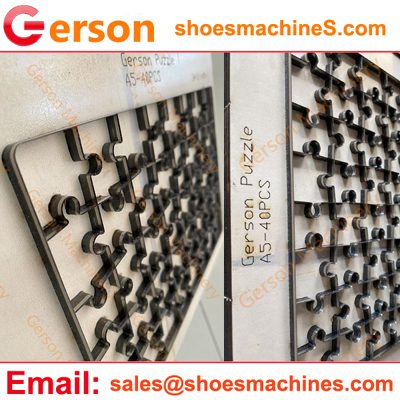

Gerson Cutstom Cutting Die
Gerson Cutstom Cutting Die

Key Factors Affecting Die Lifespan:

Factor Details Impact on Die Lifespan
Material Being Cut – Paper and thin cardstock: Low resistance
– Thicker materials: Cardboard, plastics, fabrics
– Abrasive materials: Fiberglass, laminates
– Millions of cuts for thin materials
– Reduced lifespan for thicker materials
– Rapid wear for abrasive materials
Die Quality – High-quality steel dies: Durable and wear-resistant
– Lower-quality dies: Prone to damage
– Longer lifespan for high-quality dies
– Shorter lifespan for lower-quality dies
Die Type – Crafting dies (thin metal): For repeated use
– Industrial steel rule dies: High-volume use
– Crafting dies last with proper care
– Industrial dies require maintenance over time
Machine and Pressure – Proper setup: Correct pressure and alignment
– Excessive pressure: Causes wear
– Maximizes lifespan with proper setup
– Premature wear with excessive pressure
Maintenance – Regular cleaning: Removes debris and adhesive
– Proper storage: Prevents damage
– Extends lifespan with regular care
– Reduces lifespan if neglected
Cutting Environment – Clean and controlled conditions
– Harsh environments: Dust, moisture
– Prolongs lifespan in clean environments
– Accelerates wear in harsh conditions
Frequency of Use – High-volume production: Constant use
– Intermittent use: Less frequent
– Dies wear faster in high-volume use
– Dies last longer with intermittent use and care
Sharpness and Maintenance – Regular sharpening: Maintains efficiency
– Neglect: Leads to deterioration
– Extends lifespan with sharpening
– Reduces lifespan if not maintained
Summary:

The lifespan of a cutting die is influenced by a combination of factors, including the material being cut, die quality, machine setup, maintenance practices, and usage conditions. Proper care and attention to these factors can significantly extend the life of a cutting die. The table above provides a clear breakdown of how each factor impacts die lifespan.

The post Key Factors Affecting Cutting Die Lifespan appeared first on Die cutting machine,hydraulic press machinery manufacturer for sale.

]]>
Used Beam Press VS.New Beam Press https://www.shoesmachines.com/used-beam-press-vs-new-beam-press.html Tue, 18 Feb 2025 08:11:44 +0000 https://www.shoesmachines.com/?p=10715 Choosing between a used and a new beam press requires careful consideration of several key factors. Here’s a breakdown to help you decide: Cost: Used: Lower initial purchase price, making it attractive for budget-conscious buyers or startups. However, factor in potential repair and maintenance costs. New: Higher upfront cost but offers predictable expenses and often …

Used Beam Press VS.New Beam Press Read More »

The post Used Beam Press VS.New Beam Press appeared first on Die cutting machine,hydraulic press machinery manufacturer for sale.

]]>
Choosing between a used and a new beam press requires careful consideration of several key factors. Here’s a breakdown to help you decide:

Gerson Bema Press
Gerson Bema Press

Cost:

  • Used: Lower initial purchase price, making it attractive for budget-conscious buyers or startups. However, factor in potential repair and maintenance costs.
  • New: Higher upfront cost but offers predictable expenses and often includes warranties.

Reliability and Performance:

  • Used: Condition is a major concern. Unknown history and potential wear and tear can lead to unpredictable downtime and repairs. Thorough inspection is crucial.
  • New: Guaranteed performance, modern technology, and manufacturer support provide peace of mind and minimize disruptions.

Parts and Support:

  • Used: Finding replacement parts for older models can be difficult and time-consuming, potentially leading to extended downtime.
  • New: Parts are readily available, and manufacturer support is readily accessible, ensuring quick repairs and minimizing production halts.

Technology:

  • Used: May lack the latest advancements in automation, precision, and efficiency, potentially limiting your production capabilities.
  • New: Equipped with cutting-edge technology, offering improved accuracy, speed, and energy efficiency, enhancing productivity and potentially lowering operating costs.

Environmental Impact:

  • Used: Older machines may not meet current environmental regulations, leading to higher energy consumption and potential compliance issues.
  • New: Designed with energy efficiency in mind and compliant with modern environmental standards, contributing to sustainability and potentially reducing operating costs.

Depreciation:

  • Used: Minimal depreciation as the initial value has already decreased.
  • New: Higher initial depreciation.

Warranty:

  • Used: Limited or no warranty coverage, increasing the risk of unexpected expenses.
  • New: Comprehensive warranty from the manufacturer, providing protection against defects and reducing financial risk.
Comparison Table:
Feature Used Beam Press New Beam Press
Cost Lower initial purchase price Higher upfront cost
Reliability Potentially variable, dependent on condition Consistent, guaranteed performance
Performance May be adequate, but potentially outdated Modern technology, optimized efficiency
Parts/Support Potentially difficult to find parts Readily available parts and manufacturer support
Technology Likely outdated, may lack modern features Latest advancements in automation and precision
Environment May not meet current standards Designed for energy efficiency and compliance
Depreciation Minimal depreciation Higher initial depreciation
Warranty Limited or no warranty Comprehensive manufacturer warranty
In summary:
  • Choose used if: Your budget is extremely tight, you have in-house maintenance expertise, and you’re willing to accept the risks associated with older equipment. A thorough inspection is absolutely essential.
  • Choose new if: Reliability, performance, access to support, and modern technology are paramount. The higher upfront cost is offset by reduced downtime, increased efficiency, and a longer lifespan.

Ultimately, the best choice depends on your specific needs, budget, and risk tolerance. Carefully weigh the pros and cons of each option before making a decision.

Gerson Beam Presses:

Used and New

  • Used Gerson Beam Presses:
    • Cost-effective: Likely a good option if you’re on a budget.
    • Variety: You might find different models and sizes available on the used market.
    • Condition is key: Carefully assess the condition and history of any used press before purchasing. Consider factors like age, maintenance records, and previous usage.
  • New Gerson Beam Presses:
    • Latest technology: Benefit from Gerson’s newest advancements in CNC technology, automation, and safety features.
    • Customization: You may have options to customize a new press to your exact specifications.
    • Warranty and support: Get full manufacturer support and warranty coverage.
  • CNC Beam Presses:
    • Precision and efficiency: CNC (Computer Numerical Control) beam presses offer highly accurate and repeatable cutting, ideal for complex shapes and high-volume production.
    • Automation: CNC capabilities enable automated workflows, potentially increasing productivity and reducing labor costs.
    • Versatility: CNC presses can handle a wide range of materials and thicknesses.

Things to Consider When Choosing a Gerson Beam Press:

  • Your specific needs: What materials will you be cutting? What are your production volume requirements? What level of precision do you need?
  • Budget: How much are you willing to invest in a beam press?
  • Condition (for used presses): If considering a used press, get a thorough inspection to assess its condition and potential maintenance needs.
  • Features and technology: Evaluate the features and technology offered by different models, especially if CNC capabilities are important to you.
  • Gerson’s reputation: Gerson has a long history in the industry, so research their reputation for quality and customer support.

The post Used Beam Press VS.New Beam Press appeared first on Die cutting machine,hydraulic press machinery manufacturer for sale.

]]>
How to Choosing the Right Cutting Die for a Specific Material ? https://www.shoesmachines.com/how-to-choosing-the-right-cutting-die-for-a-specific-material.html Mon, 17 Feb 2025 12:30:36 +0000 https://www.shoesmachines.com/?p=10708 Choosing the right cutting die for a specific material is crucial for achieving clean cuts, minimizing wear, and ensuring efficient production. Here’s a breakdown of the key factors to consider: 1. Material Properties: Hardness and Thickness: The harder and thicker the material, the more robust the die needs to be. Thicker materials require dies with …

How to Choosing the Right Cutting Die for a Specific Material ? Read More »

The post How to Choosing the Right Cutting Die for a Specific Material ? appeared first on Die cutting machine,hydraulic press machinery manufacturer for sale.

]]>
Choosing the right cutting die for a specific material is crucial for achieving clean cuts, minimizing wear, and ensuring efficient production. Here’s a breakdown of the key factors to consider:

Pre-sharp Cutting Die
Pre-sharp Cutting Die

1. Material Properties:

  • Hardness and Thickness: The harder and thicker the material, the more robust the die needs to be. Thicker materials require dies with higher load-bearing capacity and sharper cutting edges.
  • Density and Abrasiveness: Dense and abrasive materials can cause excessive wear on the die. Consider dies made from wear-resistant materials like carbide or powder metallurgical steel.
  • Ductility and Elasticity: Ductile materials may require dies with specific cutting profiles to prevent tearing or deformation. Elastic materials may need dies with tighter clearances to ensure clean cuts.

2. Die Material:

    • High-speed steel (HSS): Suitable for medium-strength materials and thick sheets.
    • Powder metallurgical steels: Offer high toughness and are ideal for materials with high strength or those that cause abrasive wear.
    • Carbides: Provide maximum wear resistance and are used for materials with the highest strength.
    • Steel Type: Different steel types offer varying degrees of hardness, toughness, and wear resistance. Common options include:
  • Coating: Applying coatings like titanium nitride (TiN) can enhance the die’s surface hardness and reduce friction, improving its lifespan and cutting performance.

3. Die Design and Geometry:

  • Cutting Edge Profile: The shape and angle of the cutting edge should be tailored to the material being cut. Different profiles are available for various materials and cutting applications.
  • Clearance: The gap between the punch and die is crucial for clean cuts. It needs to be optimized based on the material thickness and properties.
  • Die Strength: The die’s overall design must ensure it can withstand the forces involved in the cutting process without deforming or breaking.

4. Application Requirements:

  • Cutting Speed and Force: Consider the speed and force required for the cutting operation. This will influence the choice of die material and design.
  • Production Volume: For high-volume production, prioritize dies made from durable materials to minimize downtime for replacements.
  • Cut Quality: The desired quality of the cut edge will influence the selection of die material, cutting edge profile, and clearance.
Rotary cutting die
Rotary cutting die

5. Additional Considerations:

  • Die Maintenance: Consider the ease of maintenance and sharpening requirements for the chosen die.
  • Cost: Balance the cost of the die with its expected lifespan and performance benefits.
  • Supplier Expertise: Choose a reputable custom cutting die supplier,such as Gerson , with experience in manufacturing dies for the specific material and application.

Here’s a table summarizing the key factors to consider when choosing a cutting die, along with examples:

Factor Description Example
Material Properties Hardness, thickness, density, abrasiveness, ductility, elasticity Hardened steel requires a more robust die than soft copper.
Die Material Steel type (HSS, carbide), coating Carbide dies with TiN coating are ideal for abrasive materials.
Die Design and Geometry Cutting edge profile, clearance, die strength Sharp cutting edges are crucial for clean cuts in thin materials.
Application Requirements Cutting speed, force, production volume, cut quality High-volume production may necessitate a die with a longer lifespan.
Additional Considerations Die maintenance, cost, supplier expertise Consider the cost of die replacements and maintenance when making a decision.

Remember:

  • Always consult with die manufacturers or experts to get specific recommendations for your material and application.
  • Conduct thorough testing to validate the die’s performance and make any necessary adjustments.

This is for informational purposes only. For medical advice or diagnosis, consult a Gerson .

At Gerson, we’re a leading cutting die company driven by dedicated engineers and a commitment to R&D. We specialize in crafting custom die cutting solutions tailored to your exact needs.Our extensive range of custom dies includes:

  • Steel Rule Dies
  • Pre-Sharp Dies
  • Forging Dies
  • Machined Dies
  • Rotary Dies
  • Match-Metal Dies
  • Scrap Removal Cutting Dies
  • Hole Punches
  • Creasing Dies
  • Thermal Dies
  • Embossing Dies
  • R&D Sample Tooling

Explore our custom die cutting services to discover how Gerson can elevate your products.

The post How to Choosing the Right Cutting Die for a Specific Material ? appeared first on Die cutting machine,hydraulic press machinery manufacturer for sale.

]]>
Cutting Die vs. Forming Die:A Detailed Comparison https://www.shoesmachines.com/cutting-die-vs-forming-diea-detailed-comparison.html Sun, 16 Feb 2025 03:51:49 +0000 https://www.shoesmachines.com/?p=10691 Cutting dies and forming dies are specialized tools used in manufacturing processes, particularly in industries like metalworking, packaging, and plastics. While both are used to shape materials, they serve different purposes and have distinct characteristics. Below is a comparison of the two: 1. Purpose Cutting Die: Used to cut or shear materials into specific shapes …

Cutting Die vs. Forming Die:A Detailed Comparison Read More »

The post Cutting Die vs. Forming Die:A Detailed Comparison appeared first on Die cutting machine,hydraulic press machinery manufacturer for sale.

]]>
Cutting dies and forming dies are specialized tools used in manufacturing processes, particularly in industries like metalworking, packaging, and plastics. While both are used to shape materials, they serve different purposes and have distinct characteristics. Below is a comparison of the two:

A5 40 pcs Pieces Jigsaw Puzzle Cutting Dies mold tool
Gerson Custom Cutting Die
1. Purpose
  • Cutting Die:
    • Used to cut or shear materials into specific shapes or sizes.
    • Typically removes excess material to create a desired outline or pattern.
  • Forming Die:
    • Used to bend, stretch, or shape materials without removing any material.
    • Changes the geometry of the material to create 3D forms or contours.
2. Operation
  • Cutting Die:
    • Applies high pressure to shear or slice through the material.
    • Often used in punching, blanking, or die-cutting processes.
  • Forming Die:
    • Applies controlled force to deform the material into a new shape.
    • Commonly used in processes like bending, stamping, deep drawing, or extrusion.
3. Tool Design
  • Cutting Die:
    • Features sharp edges or blades to cleanly cut through materials.
    • May include male and female components that work together to shear the material.
  • Forming Die:
    • Designed with contours, cavities, or molds to shape the material.
    • Often includes punches and dies that work together to deform the material.
4. Material Interaction
  • Cutting Die:
    • Removes material, resulting in scrap or waste.
    • Leaves a clean edge on the cut piece.
  • Forming Die:
    • Does not remove material; instead, it reshapes the existing material.
    • May introduce stresses or thinning in the material during deformation.
5. Applications
  • Cutting Die:
    • Used in industries like packaging (e.g., cutting cardboard, labels, or foils).
    • Common in metalworking for blanking, punching, or trimming parts.
    • Used in textiles for cutting fabric patterns.
  • Forming Die:
    • Used in automotive manufacturing to create body panels or structural components.
    • Common in appliance manufacturing for shaping metal or plastic parts.
    • Used in packaging to create 3D containers or trays.
6. Complexity
  • Cutting Die:
    • Generally simpler in design, focusing on precise edges and clean cuts.
    • May require less maintenance due to fewer moving parts.
  • Forming Die:
    • More complex, as it must account for material flow, stretching, and thinning.
    • Requires precise alignment and often involves multiple stages for complex shapes.
7. Material Compatibility
  • Cutting Die:
    • Works well with a wide range of materials, including paper, cardboard, plastics, metals, and fabrics.
    • Suitable for both thin and thick materials, depending on the die design.
  • Forming Die:
    • Best suited for ductile materials that can be deformed without cracking, such as metals, plastics, and certain composites.
    • Less effective for brittle materials that may fracture during forming.
Forming Die
8. Precision and Tolerances
  • Cutting Die:
    • High precision is required to achieve clean cuts and accurate dimensions.
    • Tolerances are critical, especially for intricate designs.
  • Forming Die:
    • Precision is important to ensure consistent shapes and avoid defects like wrinkling or tearing.
    • Tolerances must account for material springback (elastic recovery after forming).
9. Cost
  • Cutting Die:
    • Generally lower cost for simpler designs.
    • Higher costs for intricate or multi-cavity dies.
  • Forming Die:
    • Typically more expensive due to complex designs and the need for precise alignment.
    • Multi-stage forming dies can significantly increase costs.
10. Maintenance
  • Cutting Die:
    • Requires sharpening or replacement of cutting edges over time.
    • Less prone to wear compared to forming dies.
  • Forming Die:
    • Requires regular maintenance to address wear, especially in high-stress areas.
    • May need polishing or resurfacing to maintain surface quality.
11. Examples
  • Cutting Die:
    • A die used to cut out cardboard shapes for packaging.
    • A punch press die for creating holes in metal sheets.
  • Forming Die:
    • A die used to stamp a car door panel from a flat metal sheet.
    • A mold for creating plastic bottles through blow molding.

Here’s a table summarizing the key differences between cutting dies and forming dies:

Aspect Cutting Die Forming Die
Purpose Cuts or shears materials into specific shapes. Bends, stretches, or shapes materials into 3D forms.
Operation Shears or slices through material. Deforms material without removing it.
Tool Design Sharp edges or blades for clean cuts. Contours, cavities, or molds for shaping.
Material Interaction Removes material, creating scrap. Reshapes material without removing it.
Applications Packaging (cardboard, labels), metalworking (blanking, punching), textiles. Automotive (body panels), appliances, packaging (3D containers).
Complexity Simpler design, focusing on clean cuts. More complex, accounting for material flow and deformation.
Material Compatibility Works with paper, cardboard, plastics, metals, fabrics. Best for ductile materials like metals and plastics.
Precision High precision for clean cuts and dimensions. Precision needed to avoid defects like wrinkling or tearing.
Cost Lower cost for simpler designs. Higher cost due to complex designs and alignment.
Maintenance Requires sharpening or edge replacement. Regular maintenance for wear and surface quality.
Examples Cutting cardboard shapes, punching holes in metal. Stamping car door panels, blow molding plastic bottles.
Conclusion
  • Cutting Dies are used to cut or shear materials into specific shapes, producing clean edges and removing excess material. They are simpler in design and ideal for applications requiring precise outlines or patterns.
  • Forming Dies are used to bend, stretch, or shape materials into 3D forms without removing material. They are more complex and suited for creating contoured or structural components.

The choice between cutting dies and forming dies depends on the desired outcome, material type, and production requirements. Cutting dies are best for creating flat shapes, while forming dies are used to create complex, three-dimensional parts.

Gerson  manufactured a wide range of custom dies, including steel rule die, pre-sharp die, forging die,machined die,rotary die ,match-metal die ,scrap removal cutting die,hole punch, creasing, thermal, embossing etc.,

The post Cutting Die vs. Forming Die:A Detailed Comparison appeared first on Die cutting machine,hydraulic press machinery manufacturer for sale.

]]>
Ram Punch Cutting Die Mold https://www.shoesmachines.com/ram-punch-cutting-die-mold.html Mon, 10 Feb 2025 04:26:11 +0000 https://www.shoesmachines.com/?p=10610 A ram punch cutting die mold is a tool used in manufacturing to cut shapes out of materials like paper, card, plastic, or even thin metal. Here’s how it works:                    The Die: This is a sharp, shaped blade that’s made to cut a specific design. It’s …

Ram Punch Cutting Die Mold Read More »

The post Ram Punch Cutting Die Mold appeared first on Die cutting machine,hydraulic press machinery manufacturer for sale.

]]>
A ram punch cutting die mold is a tool used in manufacturing to cut shapes out of materials like paper, card, plastic, or even thin metal. Here’s how it works:

Ram Punch Cutting Die Mold
Ram Punch Cutting Die Mold
Tungsten Carbide Steel Ram Punch Cutting Dies

















  • The Die: This is a sharp, shaped blade that’s made to cut a specific design. It’s usually made of hardened steel for durability.
  • The Ram: This is a machine part that applies force. In a ram punch, it pushes the material through the die.
  • The Process: The material to be cut is placed between the die and the ram. When the ram comes down, it forces the material through the die, creating the desired shape.

Ram punch cutting die molds are used for:

  • High-volume production: They’re efficient for making many identical shapes quickly.
  • Various materials: They can cut through paper, cardstock, plastic, fabric, leather, and even thin metals.
  • Precise shapes: They create clean, accurate cuts.

Here’s that information the products and material for examples:

Material Category Product Examples
Paper & Cardboard Labels (product, stickers, hang tags), Packaging (cartons, boxes, inserts), Stationery (business cards, greeting cards, postcards), Promotional Materials (flyers, brochures, leaflets), Games (playing cards, game boards, puzzles)
Plastic Packaging (blister packs, clamshells, containers), Promotional Items (keychains, toys, novelties), Cards (gift cards, membership cards, ID cards)
Fabric Clothing labels, Patches
Leather Leather goods, Tags
Thin Metals Gaskets, Washers

Ram punch cutting dies Types:

Ram punch cutting dies are a versatile tool used in various industries to cut shapes out of materials. Here are some of the most common types:

  • High alloy steel dies: These dies are made from a type of steel that is hardened and tempered to provide good wear resistance and toughness. High alloy steel dies are a good choice for general purpose cutting applications.

  • Tungsten carbide steel dies: These dies are made from a type of steel that is reinforced with tungsten carbide particles. Tungsten carbide steel dies are extremely hard and wear resistant, making them ideal for cutting abrasive materials or for high-volume production runs.

If you’re looking for a ram punch cutting die mold, you might want to consider:

  • The material you’ll be cutting: This will determine the type of die you need.
  • The complexity of the shape: Intricate designs may require more specialized dies.
  • The size of your production runs: This will help you choose the right equipment.
  • The cost of cutting die:Gerson have own die making working facility to manufacture the ram punch cutting die.

When contacting Gerson for custom built ram punch cutting die, be prepared to provide:

  • Design files: Vector files (AI, EPS, SVG) are ideal.
  • Material samples: If possible, provide samples of the material you’ll be cutting.
  • Quantity estimates: How many products will you be making?
  • Timeline: When do you need the die and finished products?

By working with Gerson, you can get a custom ram punch cutting die that perfectly meets your needs and helps you create high-quality products.

The post Ram Punch Cutting Die Mold appeared first on Die cutting machine,hydraulic press machinery manufacturer for sale.

]]>
A5 40pcs Pieces Jigsaw Puzzle Cutting Die mold tool https://www.shoesmachines.com/a5-40pcs-pieces-jigsaw-puzzle-cutting-die-mold-tool.html Mon, 13 Jan 2025 06:54:18 +0000 https://www.shoesmachines.com/?p=10595 An A5 40-piece Jigsaw Puzzle Cutting Die mold tool is specifically designed to manufacture 40-piece jigsaw puzzles within the A5 paper size (approximately 5.83 inches x 4.13 inches or 210 mm X 148 mm). Key Features: Customization: Design Flexibility: The cutting die can be custom-made based on your unique design drawings, allowing for personalized puzzle …

A5 40pcs Pieces Jigsaw Puzzle Cutting Die mold tool Read More »

The post A5 40pcs Pieces Jigsaw Puzzle Cutting Die mold tool appeared first on Die cutting machine,hydraulic press machinery manufacturer for sale.

]]>

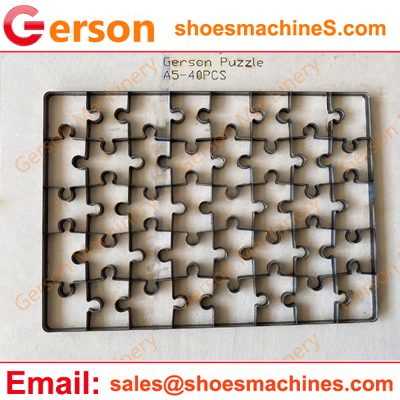

A5 40pcs Pieces Jigsaw Puzzle Cutting Die mold tool
A5 40 pcs Pieces Jigsaw Puzzle Cutting Dies mold tool

An A5 40-piece Jigsaw Puzzle Cutting Die mold tool is specifically designed to manufacture 40-piece jigsaw puzzles within the A5 paper size (approximately 5.83 inches x 4.13 inches or 210 mm X 148 mm).

Key Features:

  • Customization:
    • Design Flexibility: The cutting die can be custom-made based on your unique design drawings, allowing for personalized puzzle shapes and patterns.
    • Piece Count Customization: The number of puzzle pieces can be customized to your specific requirements.
    • Dimension Customization: The dimensions of the die can be adjusted to accommodate various puzzle sizes and shapes.
  • Materials:
    • Steel Rule: Crafted from high-carbon steel, hardened and tempered for optimal cutting performance, ensuring sharp and precise cuts.
    • Die Board: Typically made from 18mm plywood, providing a strong and stable base for the steel rule, while also being relatively easy to machine and shape for complex die designs.
  • Production Capability: Gerson possesses its own in-house facility for producing puzzle cutting dies, enabling quick turnaround times for custom orders.

FeatureDescription
Puzzle TypeA5 40-piece Jigsaw Puzzle
SizeA5 (approximately 5.83 inches x 4.13 inches)
Piece Count40 pieces
CustomizationCustomizable design based on drawings.Adjustable piece count.Variable die dimensions.
Materials

Steel Rule: High-carbon steel, hardened and tempered

Die Board: 18mm plywood

ProductionIn-house facility for quick turnaround

This cutting die tool, incorporating high-quality steel rule and a robust plywood board, enables the efficient and accurate production of A5 40-piece jigsaw puzzles, providing a foundation for a wide range of creative and engaging puzzle designs.



The post A5 40pcs Pieces Jigsaw Puzzle Cutting Die mold tool appeared first on Die cutting machine,hydraulic press machinery manufacturer for sale.

]]>
A6 30 Pieces Jigsaw Puzzle Cutting Die Tool Mold https://www.shoesmachines.com/a6-30-pieces-jigsaw-puzzle-cutting-die-tool-mold.html Sun, 12 Jan 2025 12:52:44 +0000 https://www.shoesmachines.com/?p=10587 A6 30 Pieces Jigsaw Puzzle cutting die tool mold is specialized die  cutter used to manufacture A6 size about 4.13 inches by 5.83 inches or 148mm by 105mm jigsaw puzzles. This is the crucial component, crafted from hardened steel with intricate, precisely engineered cutting edges. The die’s shape determines the puzzle’s final piece configuration, including …

A6 30 Pieces Jigsaw Puzzle Cutting Die Tool Mold Read More »

The post A6 30 Pieces Jigsaw Puzzle Cutting Die Tool Mold appeared first on Die cutting machine,hydraulic press machinery manufacturer for sale.

]]>
A6 30 Pieces Jigsaw Puzzle cutting die tool mold is specialized die  cutter used to manufacture A6 size about 4.13 inches by 5.83 inches or 148mm by 105mm jigsaw puzzles.

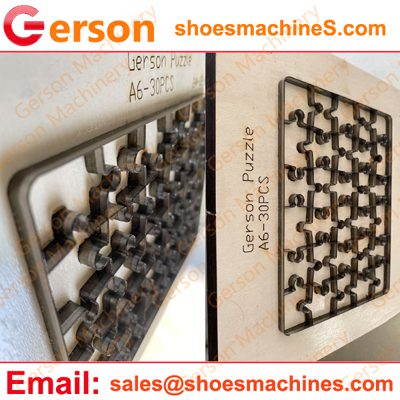

A6 30 Pieces Jigsaw Puzzle cutting die tool mold

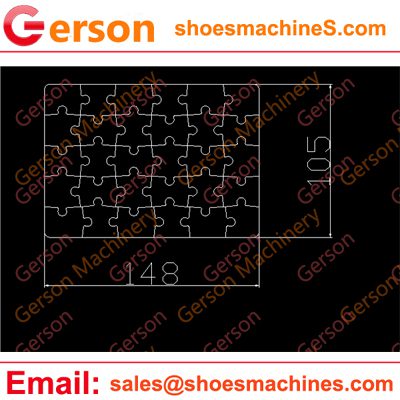

A6 30pcs Pieces jigsaw Puzzle cutting die tool mold drawing
A6 30pcs Pieces jigsaw Puzzle cutting die tool mold drawing

This is the crucial component, crafted from hardened steel with intricate, precisely engineered cutting edges. The die’s shape determines the puzzle’s final piece configuration, including the number of pieces, their size, and the unique interlocking shapes.

A6 30 Pieces Jigsaw Puzzle Cutting Die Tool Mold Features:

Feature Description
Puzzle Size A6 (4.13 x 5.83 inches) to Extra-Large
Puzzle Design Any pattern based on your design or custom design by Gerson
Cutting Patterns Grid Cut, Random Cut, Curved Cut
Piece Count 30 pieces  Note : Gerson can make any pieces over 3000 pieces (customizable)
Portability Small sizes are highly portable
Benefits Develops fine motor skills, hand-eye coordination, spatial reasoning, and problem-solving abilities
 Material Steel Rule:High-carbon steel, hardened and tempered, wear resistance, edge retention, sharpness.

Die Board:18mm plywood,Good support, withstands moderate to heavy pressure, minimizes deflection, easy to machine

  • Size: A6 is a standard paper size, roughly 4.13 inches by 5.83 inches.Gerson can make small size to Extra-Large size puzzle cutting die .
  • Puzzle Design Pattern:Gerson can make any pattern based on your design drawing,or we could design for you.

    A6 30pcs Pieces jigsaw Puzzle cutting die tool mold
    A6 30pcs Pieces jigsaw Puzzle cutting die tool mold
    1. Grid Cut: The most common, with straight cuts creating rectangular or square pieces.
    2. Random Cut: Irregular shapes with no discernible pattern, increasing difficulty.
    3. Curved Cut: Pieces have curved edges, adding complexity.
  • Piece Count: 30 pieces offer a manageable number for young children or those new to puzzling, while still providing a satisfying level of complexity.Gerson can make any size based on request from single 2 pcs ,to over 1000 pieces,for example 1500pcs etc.,
  • Portability: Its small size makes it easy to transport and play with on the go.
  • Benefits: 30-piece puzzles help develop fine motor skills, hand-eye coordination, spatial reasoning, and problem-solving abilities.
  •  The  Materials for puzzle cutting die:

    1. Steel Rule:

      • Material: Made of high-carbon steel, often hardened and tempered for optimal cutting performance.So that can make sure the precision cutting .
      • Properties: Higher hardness translates to better wear resistance and edge retention., and sharpness are essential for clean cuts.
    2. Die Board:

      • Materials:18mm (approximately 0.7 inches)plywood board ,Provides good support for the steel rule and withstands moderate to heavy cutting pressures.
      • Properties:Minimizes deflection during the cutting process, ensuring accurate and consistent cuts.Relatively easy to machine and shape, allowing for the creation of complex die designs.

Application :The Cutting Process.

  1. Material Preparation: The puzzle material, typically cardboard or wood, is placed onto the mold.
  2. Die Application: The intricately shaped die is positioned on top of the material.
  3. Pressing and Cutting: High pressure is applied to the die, forcing it through the material and cleanly cutting out the puzzle pieces.
  4. Piece Separation: The cut puzzle pieces are then carefully separated from the remaining material.

Gerson have  a variety of puzzle die cutting machines to cater to different production needs, from small-scale projects to high-volume manufacturing.



The post A6 30 Pieces Jigsaw Puzzle Cutting Die Tool Mold appeared first on Die cutting machine,hydraulic press machinery manufacturer for sale.

]]>
Top 10 Manufacturers of PTFE Membrane Filters https://www.shoesmachines.com/top-10-manufacturers-of-ptfe-membrane-filters.html Wed, 27 Nov 2024 16:26:20 +0000 https://www.shoesmachines.com/?p=10528 Top 10 Manufacturers of PTFE Membrane Filters: When considering the top manufacturers of PTFE (polytetrafluoroethylene) membrane filters.The Common Specifications and Features: Pore Size: Ranges from 0.1 µm to 10 µm or more Material: Polytetrafluoroethylene (PTFE)    Temperature Range: Wide temperature range, often up to 260°C    Chemical Compatibility: Excellent resistance to most chemicals and solvents  …

Top 10 Manufacturers of PTFE Membrane Filters Read More »

The post Top 10 Manufacturers of PTFE Membrane Filters appeared first on Die cutting machine,hydraulic press machinery manufacturer for sale.

]]>
Top 10 Manufacturers of PTFE Membrane Filters:

When considering the top manufacturers of PTFE (polytetrafluoroethylene) membrane filters.The Common Specifications and Features:

PTFE Membrane Filters
  • Pore Size: Ranges from 0.1 µm to 10 µm or more
  • Material: Polytetrafluoroethylene (PTFE)
  • Temperature Range: Wide temperature range, often up to 260°C
  • Chemical Compatibility: Excellent resistance to most chemicals and solvents
  • Hydrophobic or Hydrophilic: Available in both hydrophobic and hydrophilic versions
  • Sterilization Methods: Can be sterilized by autoclaving, gamma irradiation, or ethylene oxide

It is essential to evaluate companies based on their reputation, product offerings, and industry presence. As of November 2024, here are the leading manufacturers in this field:

Here are some of the leading manufacturers of PTFE membrane filters, along with general specifications that can vary across their product lines:

  1. Graver Technologies
    Founded in 1866, Graver Technologies specializes in industrial filtration and purification products. They offer a wide range of filters including those suitable for power generation, microelectronics, food & beverage, and healthcare industries.
  2. SpinTek Filtration, Inc.
    SpinTek focuses on innovative filtration solutions and has developed advanced membrane technologies for various applications including water treatment and industrial processes.
  3. Advantec MFS Inc.
    Established in 1975, Advantec MFS manufactures a variety of filtration products including PTFE membrane filters that are widely used in laboratories and industrial settings.
  4. Pall Corporation
    A global leader in filtration, separation, and purification technologies, Pall Corporation offers a comprehensive range of PTFE membrane filters designed for critical applications across multiple industries.
  5. Merck KGaA (MilliporeSigma)
    Merck KGaA provides high-quality laboratory supplies including PTFE membrane filters that cater to the pharmaceutical and biotechnology sectors.
  6. Sartorius AG
    Sartorius is known for its bioprocess solutions and laboratory products, including a selection of PTFE membrane filters tailored for sterile filtration processes.
  7. GE Healthcare Life Sciences
    GE Healthcare offers a variety of filtration solutions including PTFE membranes used in biopharmaceutical manufacturing and research applications.
  8. Thermo Fisher Scientific
    This company provides an extensive portfolio of scientific instruments and consumables, including PTFE membrane filters suitable for various laboratory applications.
  9. Cytiva (formerly part of GE Healthcare)
    Cytiva specializes in life sciences tools and technologies; they manufacture high-performance PTFE membranes used in critical bioprocessing applications.
  10. Filtration Group Corporation
    Filtration Group produces a wide range of filtration products including PTFE membranes that are utilized across different sectors such as food processing and pharmaceuticals.

Note: The specific ranking of these manufacturers may vary depending on factors such as market share, product range, and geographic location. It’s recommended to conduct further research or consult with industry experts to determine the most suitable manufacturer for your specific needs.

When selecting a PTFE membrane filter manufacturer, consider the following factors:

  • Product Quality: Ensure the manufacturer offers high-quality, consistent products.
  • Product Range: Choose a manufacturer that provides a wide range of pore sizes and membrane thicknesses to meet your specific needs.
  • Technical Support: Look for a manufacturer that offers technical support and expertise to help you select the right product and optimize your filtration process.
  • Delivery Time and Reliability: Consider the manufacturer’s ability to deliver products on time and reliably.
  • Pricing: Compare prices from different manufacturers to find the best value for your budget.

By carefully considering these factors, you can select the best PTFE membrane filter manufacturer for your specific application.

About Gerson Filter Die Cutting Machine:

Gerson is primarily known for its manufacturing of die-cutting machines and hydraulic presses, not for producing filters or die-cutting machines specifically for filter production. However, Gerson’s die-cutting machines can be used in the manufacturing process of filters, especially in the cutting of filter media and components.

How Gerson’s Die-Cutting Machines Can Be Used in Filter Production:

  1. Cutting Filter Media: Gerson’s machines can accurately cut various filter media materials, such as paper, cloth, or synthetic fibers, into precise shapes and sizes.
  2. Creating Filter Components: They can be used to cut gaskets, seals, and other components needed for filter assembly.
  3. Producing Filter Frames: Gerson’s machines can cut the frames or housings for filters, depending on the design and material.

Gerson offers a range of versatile die-cutting machines suitable for filter production. While their general-purpose machines can be adapted for filter manufacturing, Gerson also provide specialized equipment designed specifically for the unique demands of filter production. These specialized machines are tailored to high-speed, precise cutting of filter media and components, ensuring optimal efficiency and quality in filter manufacturing processes.

The post Top 10 Manufacturers of PTFE Membrane Filters appeared first on Die cutting machine,hydraulic press machinery manufacturer for sale.

]]>
