Gerson Eva Foam Sheet Die Cutting Press is die cutting machine for EVA sheet ,Foam gym flooring,EVA foam floor pad,EVA foam floor mat.Also This die cutting press is also for any other similar material ,leather ,fabric,cardbord,foam,rubber,plastic etc.,

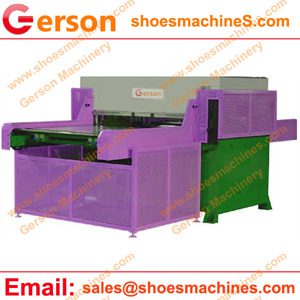

Eva Foam Sheet Die Cutting Press
1.manual/hand EVA foam sheet feed or Automatic sliding table EVA foam sheet feed .
2.Die cutting with cutting die or knife to press any shapes of the EVA Foam.
3.Cutting table size according to the EVA material size ,custom build size and cutting force .
4.This beam press use four column construction which utilizes an internal mechanical levelling system to insure a parallel cutting stroke and full uniform pressure over the entire cutting bed, even when the cutting dies are not in the center of the cutting area.
5.Any special requirement welcome to contact us.
| Model | GRH(A)-25 to 500 |
| Max cutting force(T) | From 25T to 500T |
| Distance between upper press board andworktable(mm) | 50-240 |
| Cutting area(mm) | 1250×600,700,800,900,1000,1200, 1500 |
| 1470×600,700,800,900,1000,1200, 1500 | |
| 1600×600,700,800,900,1000,1200, 1500 | |
| Motor power | 1.5 to 22KW |
| Machine Net weight (KG) | 1400 to 16500 |
| 1500 to 17500 | |
| 1700 to 18500 |
