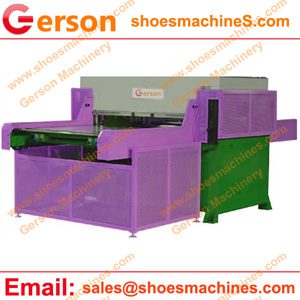

EVA die cutting machine

Gerson die cutting machine for EVA  products :including EVA fabric,EVA gift ,EVA floor  etc., For different eva products ,that need different die cutting machine for cutting . For example ,EVA floor tile,EVA mat etc. that need Gerson beam press.

The beam press have large cutting bed for die cutting different EVA Products.

The following beam cutting press features:



EVA die cutting machine
EVA die cutting machine

1.The upper press beam may automatically cut slowly when it near to the cutting dies for cutting so that there will be no dimension errors between the upper and lower layers of the cutting materials.
2.Also the double cylinder and precise four-column automatic balancing links to make sure same cutting depth in each and every cutting region.
3.External motor and oil pump enable good ventilating and cooling conditions, safety operation and prolonged service life.
4.Setting of the cutting dies mould is rapid, accurate and easy-to-learned.
5.single feeding or double feeding system,PLC controlled, available for your choice.
6.Can manufacturing the customer detailed requirement.

Model GRB(C)-25T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Range between working table 50-240mm (Upper to Bottom Table)
Stroke Adjustment 0-170mm
Cutting area(mm) (500-3000)X(1000-3000)mm
Based on your material and die
Example: 1600X600mm etc.,
Motor power 1.5 to 22KW
Electric Power 220V/380V/415V,50-60hz etc.,
Machine Net weight (KG) 1600 to 16500
1700 to 17500

Gerson can make die cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,feeding type etc.,
