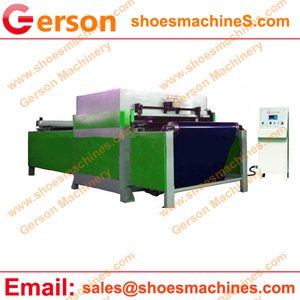

Double vertical shaft die cutting machine

Gerson double vertical shaft die cutting machine uses double vertical shaft each side of pillar/post. So the total cutting machine have four shaft that make sure the stable and strong enough for the cutting working.

Double vertical shaft die cutting machine
Double vertical shaft die cutting machine

Double vertical shaft die cutting machine can be for Leather,plastics ,composites,fabric,kevlar,rubber,cloth,paper,cardbord,fibre, wood,cork etc.,

The cutting out products size from very small pieces to big area products.

The cutting force can be 25 tons to 500 tons.

Pneumatic adjustable tool rails
Board rails to clamp cutting boards to press head
Material feed rollers
Automatic knock-out systems

Model GRB(C)-25T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Distance between upper press board andworktable(mm) 50-240
Cutting area(mm) 1250×600,700,800,900,1000,1200, 1500
1470×600,700,800,900,1000,1200, 1500
1600×600,700,800,900,1000,1200, 1500
Motor power 1.5 to 22KW
Machine Net weight (KG) 1600 to 16500
1700 to 17500
