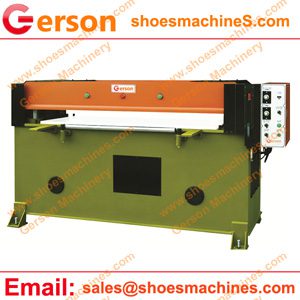

Gerson Disposable pad cutting machine is die cutting machine for making Disposable Nursing Bra Pads,disposable nursing pad,cloth etc.,It can die cutting single layer or muti-layers. Automatic roller feeding or automatic sheet feeding .manual feeding is for customers choice.
This die cutting machines most used for large area soft material die cutting .The cutting area can from 1250mm ×500mm to 2000mm×2000mm.The cutting power or pressure from 30 tons to 500 tons.
1.Using double fuel tanks and precision four-post self auto-balancing linkage guarantees the same cutting depth of each cutting position.
2.The pressing board of cutting carries out slow cutting when it contacts the die cutters, which can make that there is no size error between the uppermost layer and lowermost layer of cut materials.
3.Precise cutting balance can effectively reduce the loss of knife mold and cutting plate.
4.The central oil supply automatic lubricating system guarantees machine precision and prolongs service life of machine.
5. The following equipment tools can improve the productivity for customers choice :Automatic feeding material system and Inboard and outboard material conveyors ,material feed rollers and automatic knock-out systems
| Model | GRB(C)-25T to 500T |
| Max cutting force(T) | From 25 Tons to 500 Tons |
| Distance between upper press board andworktable(mm) | 50-240 |
| Cutting area(mm) | 1250×600,700,800,900,1000,1200, 1500 |
| 1470×600,700,800,900,1000,1200, 1500 | |
| 1600×600,700,800,900,1000,1200, 1500 | |
| Motor power | 1.5 to 22KW |
| Machine Net weight (KG) | 1600 to 16500 |
| 1700 to 17500 |
