The following Gerson die cutting press can be used for shoulder pads, and other Clothing components , hats, ties, collars,bra pad etc.,
—No comments
Published
2013/04/04
Select Die cutting press for shoulder pad clothing components

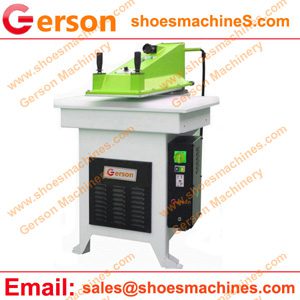

Die cutting press for shoulder pad clothing components
Most of shoulder pads factories use the clicker press for their production:
1. The cutting machine body are welded by steel sheets with firm structure and light weight.
2. It is provided with automatic lubricating system to lessen abrasion and prolong service life.
3. Safe, twin button operation guarantee the safety of operators.
4. Double-direction oil way design provides stability and reliability.
5. Two modes such as microcomputer controller and PC electronic circuit are optional for controlling the lower limit position of stroke with high precision, flexibility and convenience.
6.Quiet, vibration free operation
7.The cutting force from 22 tons to 27 tons.
|
Model |
GR-20C |
GR-27C |
GR-27C/1 |
GR-27C/2 |
| Max. cutting power |
ton. 20 |
ton. 27 |
ton. 27 |
ton. 27 |
| Maximum stroke(mm) |
80 |
100 |
100 |
100 |
| Cutting table(mm) |
900 x 430 |
900 x 450 |
1000 x 500 |
1200 x 500 |
| Arm width(mm) |
370 |
370 |
500 |
500 |
| Motor power |
HP. 1 |
HP. 1,5 |
HP. 1,5 |
HP. 1,5 |
| Net weight with oil |
Kg. 570 |
Kg. 780 |
Kg. 840 |
Kg. 910 |
| Sizes about (mm) |
1000 x 900 |
900 x 1000 |
1000 x 1000 |
1200 x 1030 |
| Sizes sea packing(mm) |
1050 x 1085 |
1050 x 1150 |
1150 x 1150 |
1350 x 1180 |
| Gross weight and volume with sea packing |
Kg. 640 |
Kg. 900 |
Kg. 980 |
Kg. 1055 |
