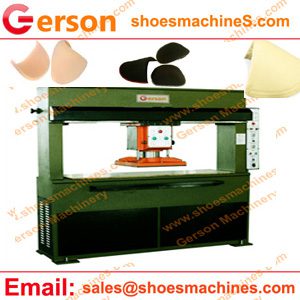

Die Cutting Machine For Polyurethane Foam Shoulder Pads

Die Cutting Machine For Polyurethane Foam Shoulder Pads is applicable to die cutting operation of various materials, mostly for making shoulder pad and sleeve head,bra pads foam pads etc.,

Die Cutting Machine For Polyurethane Foam Shoulder Pads
Die Cutting Machine For Polyurethane Foam Shoulder Pads

1. Textile fabrics, leather, cloth and the similar material used to make garment accessories can all be cut by the die cutting machine.
2. The devotion of time and labor force is greatly saved as more than one layer material can be cut once. Besides, the machine can work under the operation of the worker, or just run automatically without production reduced.
3. Both manual feed type and automatic type are easy to operate with hydraulic power. For the former, the die is separated from the press board. Once the die is appropriately placed on the material, press board will instantly come down to exert pressure to promote the cutting operation. While for the latter, all that is needed is to press the upper board with die directly on the material.
4. Other series of die cutting machines are also on the supply, you are welcomed to contact us for consultation.

Model GRM(A)-25T to 200T
Max cutting force(T) From 25 Tons to 200 Tons
Range between working table 50-240mm (Upper to Bottom Table)
Stroke Adjustment 0-170mm
Cutting table width(mm) 1800~2500mm or more
Based on your material and die
Example: 1600X600mm etc.,
Cutting Head Movable trolley 500×500 to 1000x1000mm
Motor power 3kw to 22KW
Electric Power 220V/380V/415V,50-60hz etc.,
Machine Net weight (KG) 1600 to 16500
1700 to 17500

The above are the basic standard specifications. Special specifications are available upon request.Gerson can make the cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,etc.,
