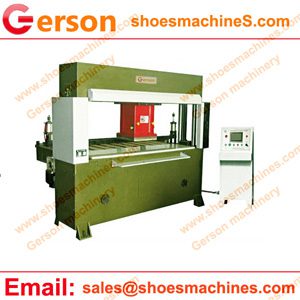

Gerson die cutting machine for plush fabric including Plush cuddle fabrics, cottons and other fabrics etc.,
plush fabric is widely used for the production of stuffed toys, with small stuffed animals made from plush fabric, such as teddy bears.
The travelling head cutting machine mounted with cutting die and can easily change if you want to cut different shapes. Automatic travelling head can set by worker easily and improve the prodution effeciency
1.The cutting setting is simple,easy to operate.
2.Button push controls with two hand operation make the safety for the workers.
3.Low-loss power and low noise.
4.The cutting trolley displacement speed will make work efficiency.
5.High reliablility ,low noise,low consuption.
6.You could use for roller materiall cutting and sheet cutting.
| Model | GRM(A)-25T to 200T |
| Max cutting force(T) | From 25 Tons to 200 Tons |
| Range between working table | 50-240mm (Upper to Bottom Table) |
| Stroke Adjustment | 0-170mm |
| Cutting table width(mm) | 1800~2500mm or more |
| Based on your material and die | |
| Example: 1600X600mm etc., | |
| Cutting Head Movable trolley | 500×500 to 1000x1000mm |
| Motor power | 3kw to 22KW |
| Electric Power | 220V/380V/415V,50-60hz etc., |
| Machine Net weight (KG) | 1600 to 16500 |
| 1700 to 17500 |
Gerson can make the cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,etc.,
