Die Cutting Machine
38 Years+ Manufacturer
Quote Now

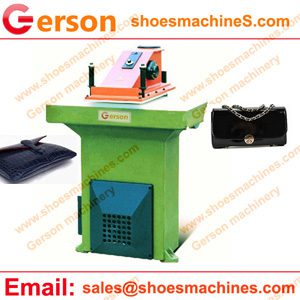

Die cutting machine for leather notebook cover

Gerson die cutting machines are used for mos tleather notebook cover,Leather Hide,PU synthetic leather,PVC etc.

Die cutting machine for leather notebook cover

There have many clicker press for your choice cutting leather products.cutting table from small size to big size ,the cutting power is from 8 tons to 28 tons.

1.Automatic stroke-end setting-up to use cutting knives of different heights without any adjustment.

2.Control push-buttons with built-in device for 5/10 of second maximum delay operation to ensure positive safety.

3.Two push-buttons and one potentiometer to set the cutting power.

4.The main control organs are covered by international patents.

5.The cutting force from 22 tons to 27 tons. Also have the other models from 8 tons to 28 tons

6.Three button handle is available.

Model Maximum Cutting power(ton) Area of work table(mm) Swaying arm width Cutting table Motor power Machine dimensions(mm) Net weight(with oil) Gross weight
GRA-220 216KN(22Ton) 900×430 370mm 90mm 0.75Hp 900×850×h1400 650kg 750kg
GRA-270 264.6KN(27Ton) 1000×500 370mm 90mm 1.1Hp 1000×1050×h1410 850kg 900kg
