Garment and upholstery leather and fabric die cutting machine .There have many Gerson models used for leather and fabric garment and upholstery.
Most small pieces leather and fabric can used clicker press for their production:

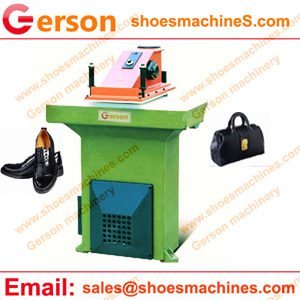

The clicker presscutting table size is about 900mm*400mm,900mm*430mm,1000mm*500mm etc.,The cutting force is from 8Ton ,10 Tons, 12 tons,14Tons,18 tons,20 Tons,22 Tons, 27/28Tons etc.,
1.Two hand operation make sure the worker safe when woking .
2.Great hydraulic system, high speed cut ,with very low noise and low temperature in working
3.From the smallest 10 Ton to 25 Tons for your choice.
4.It is very easy to adjust height of swing arm from table by simple handle.
Some factories use travelling head cutting machine for their production:
1.The cutting force can up to 100tons and cutting move head up to 1000*1000mm,cutting table width can be up to 180mm to 2500mm
2.Manual travelling head press can cutting by pushing button .Automatic can autamatic cutting and automatic moving left to right then right to left.
The fixed beam press used for the big area and cut several layers.
Model | GSB,GR,GRA,GRB serials |
Max cutting force(T) | 8Tons-500Tons or More |
Range between working table | 50-240mm (Upper to Bottom Table) |
Stroke Adjustment | 0-170mm |
Cutting table | 650×330mm to 3000mm×2500mm |
Based on your material and die | |
Example: 1000X500mm etc., | |
Cutting Head | 330×450 to More |
Motor power | 0.75kw to 22KW |
Electric Power | 220V/380V/415V,50-60hz etc., |
Machine Net weight (KG) | 1600 to 16500 |
1700 to 17500 |
Gerson can make the cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,etc.,
