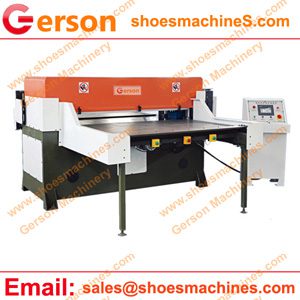

Gerson die cutting machines are used for most car interior parts including the car seat cover,Leather Hide, Dash Mats, Sun Visors, Air Bags etc.
This beam press is common used for die cutting leather,Carpet,Felt,card,paper,flooring,sponge,shoe Materials,craft products,cork,plastic,foam,rubber,gasket materials,electronics,textiles and more etc.,
1.From the smallest 25 Ton to the largest 500 Tons.
2.Cutting are from 800x500mm to any size according material requirement.
3.Die Cut materials in single or multiple layers
4.Blade upward or downward cutting
5.Four column, with two cylinder construction
6.Double mechanical balancing system
7.Even cutting and full power across complete cutting area
8.Heavy duty construction
9.Low deflection
10.Two stage press closure reduces size variation or distortion in 12.thick or multi-ply material applications
11.Steel to steel cutting available with optional equipment
12.Accept customized requirement .
This Beam press systems can be added with a range of ancillary equipment to enhance your productivity:
1.Inboard and outboard material conveyors
2.Manual tool rails
3.Pneumatic adjustable tool rails
4.Board rails to clamp cutting board to press head
5.Material feed rollers
6.Automatic knock-out systems
7.Material alignment
8.Automatic cutting pad shifter
9.Edge sensing
10.Automatic tool changing
11.Tool racking
12.Material feed gantries and many other options.
Model | GRB-25(30) | GRB-35(40) | GRB-50 | GRB-60 | GRB-80 | GRB-100 | GRB-150(200) | GRB-300(400,500) |
Max cutting force(Ton) | 25Ton30Ton | 35 Ton,40 Ton | 50 Ton | 60 Ton | 80 Ton | 100 Ton | 150Tons,
200Tons |
300Tons,400Tons.
500Tons or more |
Distance between
upper press board and worktable(mm) |
50-180 | 50-240 | 50-240 | 50-240 | 50-240 | 50-240 | 50-240 | 50-240 |
Cutting area(mm) | 1250×500 | 1250×6001250×710 | 1250×800 | 1250×800 | 1250×800 | 1250×900 | 1250×1000 | 1250×1500 |
1470×500 | 1470×6001470×710 | 1470×800 | 1470×800 | 1470×800 | 1470×900 | 1470×1000 | 1470×1500 | |
1600×500 | 1600×6001600×710 | 1600×800 | 1600×800 | 1600×800 | 1600×900 | 1600×1000 | 1600×1500 | |
Motor power | 1.5KW | 3KW | 4KW | 5.5KW | 7.5KW | 7.5KW | 11KW | 22KW |
Electric SupplyVoltage | 3 phases x440/415/400/380/220/200V, 50/60 Hz | |||||||
Machine Net weight (KG) | 1400 | 1700,1800 | 2800 | 3500 | 5000 | 6500 | 9000 | 12000 |
1500 | 1800,2000 | 3200 | 3800 | 5400 | 7000 | 9500 | 13000 | |
1700 | 2000,2200 | 3400 | 4200 | 5800 | 7500 | 10000 | 14000 | |
Gerson could design and manufacture according to customer production requirement. |
